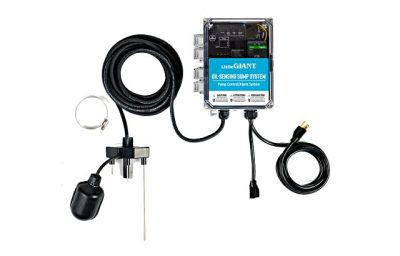

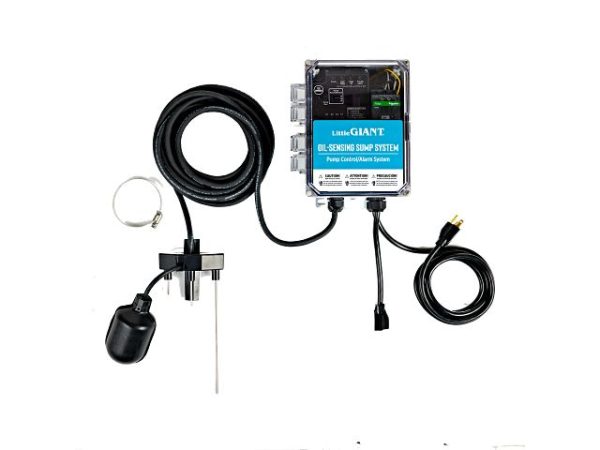

The OA1S Series oil-sensing elevator sump pump is designed and approved for the safe pumping, alarming, and monitoring of elevator sump pits, transformer vaults, and leachate wells. The OA1S elevator sump pump will activate a pump to remove water from elevator pits in accordance with ASME A17.1.
On the OA1S Series oil-sensing elevator sump pump, indicator lights will illuminate on the control panel for power, pump running, high alarm, high oil, and pump overload (optional). The panel has a set of auxiliary contacts that activate on power loss or high oil/water conditions. If the liquid level reaches the alarm probe and HIGH-LEVEL float, the system will differentiate between water and oil and activate the remote alarm.
Sensor |
|
| Electrical Input | 120 V, 60 Hz, 12 A |
| Electrical Output | 120 V, 60 Hz, 12 A |
| Max HP | 1/2 horsepower |
| Enclosure Material | Corrosion-resistant thermoplastic |
| Battery Access | Removable lid |
Control Panel |
|
| Enclosure | Type 1 |
| Power Cord | 6′ SJT, 120 VAC |
| Receptacle | SJT, 120 VAC, 15 amp |
Alarm Panel |
|
| Enclosure | Type 1 |
| Power Cord | Plug in transformer, 120 VAC |
| Backup Power | 9 VDC battery backup |
| LED Indicators | Trouble, high-level, high-oil |
| Audible Alarm | 103 db buzzer, auto test/reset |
| Head | GPM (LPM) |
| 5′ | 60 (227) |
| 10′ | 55 (208) |
| 20′ | 45 (170) |
| 30′ | 30 (114) |
| 40′ | 15 (57) |
| Item | Description |
|---|---|
| 513404 | Oil Sensing Switch Kit, 115V 60HZ, 1 HP Max, 1.0-14.0 AMP Range |
| 513405 | Oil Sensing Switch Kit, 230V 60HZ 1 HP Max, 1.4-18.0 Amp Range |
| 513406 | Oil Sensing switch 3-zone remote alarm panel |
| 513407 | Replacement OA1S pre-set oil sensing float/probe system |
| 513408 | Oil Sensing Switch Kit, 115V, 60HZ Plus 10ECH-CIA-RF 1/2 HP Pump |
