Pit+Plus JR Grinder Pump System

Click to rate this post!

[Total: 0 Average: 0]

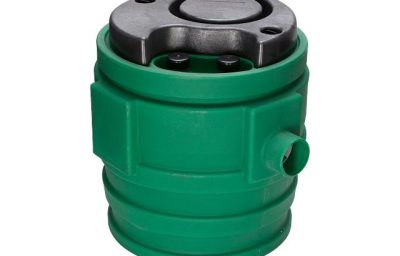

The Pit+Plus® JR Sewage Pump System is specifically designed for areas with rocky terrain or where problematic soil makes digging difficult. The larger capacity of the Pit+Plus® Jr. extends the pump life by reducing pumping cycles. This system is designed to handle liquid and solid waste materials up to 2″.

Features & Benefits

4/10 or 1/2 horsepower sewage pump options or 1 hp grinder pump option
Radial rib design for added strength
Various alarm options
360° molded handle
Integrated anti-floatation collar
Recessed discharge and vent location
47 Gallon Basin Capacity

Overview

Meet the most advanced and contractor-friendly sewage basin in the industry! The Pit & Plus JR grinder pump system features a 24″ x 24″ basin with a functional aesthetic finish cover and includes a 1 horsepower grinder pump. Designed with convenient access to the pump and cover independently with no disruption to the plumbing connections. All materials are included for easy installation.

Specifications

Vent	2″ (51 mm) or 3″ (76.2 mm)
Discharge	2″ (51 mm) or 3″ (76.2 mm)
Switch Type	Mechanical Foat or ECM
Basin Size	24″ x 24″ (61 cm x 61 cm)
Basin Material	Roto-molded polyethylene
Cover Material	Structural foam
Pump Options	9SC, 10SC-2″, 10SC-3″, 16G

Performance

Head	9SC GPM (LPM)	10SC – 2″ GPM (LPM)	10SC – 3″ GPM (LPM)	16G GPM (LPM)
5′	100 (379)	120 (454)	130 (492)	51 (193.1)
10′	80 (303)	100 (379)	110 (416)	49.3 (186.6)
15′	60 (227)	80 (303)	85 (322)	46.6 (176.4)
20′	–	44 (167)	46 (174.1)	43.9 (166.2)
30′	–	–	–	37.5 (142)
40′	–	–	–	28.7 (108.6)
50′	–	–	–	15.3 (57.9)

Order Information

Pit+Plus JR Sewage Pump Package System

Item	Model	Description
509687	9JP2V2D	Pit+Plus Jr Premium Sewage Package, 4/10 HP sewage pump, ECM switch, w/o alarm, 2″ vent, 2″ discharge
509679	9JF3V2D	Pit+Plus Jr Premium Sewage Package, 4/10 HP sewage pump, mechanical float switch, w/o alarm, 3″ vent, 2″ discharge
509674	9JF2V2DA1	Pit+Plus Jr Premium Sewage Package, 4/10 HP sewage pump, mechanical float switch, w/ alarm
511673	10JF2V2D	Pit+Plus Jr Premium Sewage Package, 1/2 HP sewage pump, mechanical float switch, w/o alarm, 2″ discharge, 2″ vent
511676	10JF2V3D	Pit+Plus® Jr. Premium Simplex Systems features 24″ x 24″ basin with tethered float switch, 2″ vent and 3″ discharge.
509673	9JF2V2D	Pit+Plus Jr Premium sewage Package, 4/10 HP sewage pump, mechanical float switch, w/o alarm, 2″ vent, 2″ discharge

Pit+Plus JR with Grinder Product Photo.psd

Pit+Plus JR Grinder Pump Package System

Item	Model	Description
509815	16JF2V2D	Premium sewage package, 1HP grinder pump, mechanical float switch, w/o alarm
