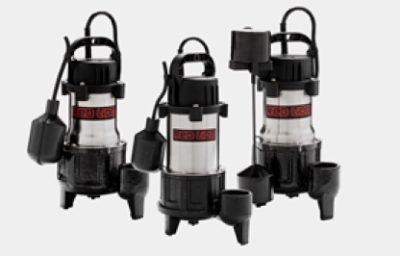

PREMIUM SUBMERSIBLE STAINLESS STEEL SUMP PUMPS
APPLICATIONS
Ideal for high-volume water removal in residential spaces such as basements and crawl spaces.
FEATURES & BENEFITS
- Automatic submersible sump pump – ideal for high-volume water removable applications
- Heavy-duty stainless steel and cast iron construction – for years of service and reliability
- Clog-resistant design – capable of passing 3/4″ diameter semi-solids
- Piggyback float switch
- Not suitable for pond use
Model | Item Number | UPC | HP | Amps/Volts | Switch | Disc. | Cord Length | Gallons Per Hour at Height | Shut- Off | On/Off Levels | Min Basin Dia. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0′ | 5′ | 10′ | 15′ | 20′ | 30′ | |||||||||||
RL-SS50V | 14942780 | 0 10121 14436 1 | 1/2 | 5/115 | Vertical | 1-1/2″ FNPT | 10′ | 3450 | 3000 | 2400 | 1800 | – | – | 25′ | On: 7.5″ Off: 4.5″ | 11″ or more |
RL-SS50T | 14942781 | 0 10121 14437 8 | 1/2 | 5/115 | Tethered | 1-1/2″ FNPT | 10′ | 3450 | 3000 | 2400 | 1800 | – | – | 25′ | On: 13.8 – 14.8″ Off: 5.5 – 6.5 | 18″ or more |
RL-SS100T | 14942782 | 0 10121 14438 5 | 1 | 8/115 | Tethered | 2″ FNPT* | 20′ | 5300 | 4800 | 4300 | 3700 | 3000 | 1300 | 35′ | On:15 – 18″ Off: 7 – 10″ | 18″ or more |
Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
RL-SS50V | 7.12″ | 10″ | 17″ | 22.5 | 0.7 | 40 | 20 | 2 |
RL-SS50T | 7″ | 10.5″ | 17″ | 22.5 | 0.72 | 40 | 20 | 2 |
RL-SS100T | 10″ | 11″ | 18″ | 33.6 | 1.15 | 32 | 16 | 2 |
