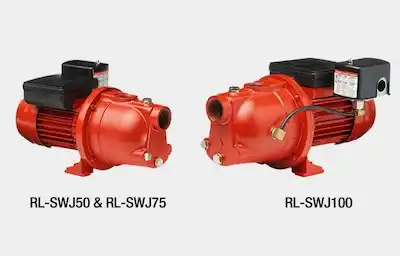

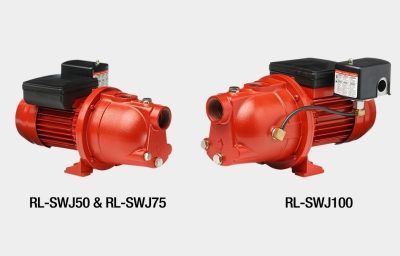

RED LION CAST IRON SHALLOW WELL JET PUMPS RL-SWJ SERIES
APPLICATIONS
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25′.
FEATURES & BENEFITS
- Shallow well jet pump – ideal for use in pumping at depths of 25’or less
- Heavy-duty cast iron construction – for years of service andreliability
- Includes factory pre-set 30/50 pressure switch – produces up to50 psi with automatic shut-off
- 115/230 Volt heavy-duty motor – TEFC design with simpleconnection to existing power source
- 1-1/4″ FNPT Intake, 1″ FNPT Discharge
- Repair kits are now available – for additional information pleasesee Owner’s Manual
Contents | Item | Replacement Parts | Where Used |
|---|---|---|---|
A5 & A10 | 305585001 | Case/Seal Plate | RL-SWJ50 & RL-SWJ75 |
A2, A3, A4 & A9 | 305585002 | Hardware Kit | RL-SWJ50 & RL-SWJ75 |
A6, A7 & A8 | 305585005 | Overhaul Kit | RL-SWJ50 |
A6, A7 & A8 | 305585006 | Overhaul Kit | RL-SWJ75 |
A7 | 305585008 | Impeller Kit | RL-SWJ50 |
A7 | 305585009 | Impeller Kit | RL-SWJ75 |
A8 | 305585011 | Shaft Seal Kit | RL-SWJ50 & RL-SWJ75 |
A1, A14 & A15 | 305585012 | Pressure Switch Kit | RL-SWJ50 & RL-SWJ75 |
B2 & B9 | 305585003 | Case/Seal Plate | RL-SWJ100 |
B1, B3 & B8 | 305585004 | Hardware Kit | RL-SWJ100 |
B5, B6 & B7 | 305585007 | Overhaul Kit | RL-SWJ100 |
B6 | 305585010 | Impeller Kit | RL-SWJ100 |
B7 | 305585011 | Shaft Seal Kit | RL-SWJ100 |
B4, B12 & B13 | 305585012 | Pressure Switch Kit | RL-SWJ100 |
C3, C4 | 305592001 | Pump/Tank Hardware Kit | RL-SWJ50/RL6H |
Model | Item Number | UPC | HP | Amps/Volts | Intake | Discharge | Pressure Gauge Port | Suction Lift | Discharge Pressure (PSI) | Max Pressure PSI | Max Head | Max Flow GPM | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20 | 30 | 40 | 50 | 60 | ||||||||||||
US Gallons Per Minutes | ||||||||||||||||
RL-SWJ50 | 97080502 | 0 10121 14671 6 | 1/2 | 8.4A @ 115V 4.2A @ 230V | 1-1/4″ FNPT | 1″ FNPT | 1/8″ NPT | 5′ | 13.6 | 12.6 | 7.3 | 3.4 | 1 | 64 | 148′ | 12.6 |
15′ | 9.7 | 9.5 | 5.5 | 2.8 | 0.3 | 60 | 139′ | |||||||||
25′ | 4.7 | 5 | 4.1 | 1.7 | 0 | 57 | 133′ | |||||||||
RL-SWJ75 | 97080701 | 0 10121 14672 3 | 3/4 | 9A @ 115V 4.5A @ 230V | 1-1/4″ FNPT | 1″ FNPT | 1/8″ NPT | 5′ | 13.4 | 13 | 9.1 | 4.8 | 1.5 | 70 | 161′ | 13 |
15′ | 9.8 | 9.7 | 7.2 | 3.4 | 0.8 | 66 | 152′ | |||||||||
25′ | 4.4 | 5.2 | 4.8 | 1.8 | 0.4 | 62 | 144′ | |||||||||
RL-SWJ100 | 97081001 | 0 10121 14673 0 | 1 | 13.2A @ 115V 6.6A @ 230V | 1-1/4″ FNPT | 1″ FNPT | 1/8″ NPT | 5′ | 17.3 | 17 | 12.9 | 8.5 | 4.4 | 74 | 172′ | 17 |
15′ | 12.7 | 12.4 | 10.9 | 7 | 2.7 | 72 | 166′ | |||||||||
25′ | 6.7 | 6.5 | 6.6 | 5.2 | 2 | 68 | 156′ | |||||||||
*Correction*
The owner’s manual states the port for the pressure gauge is 1/4″ NPT – it is actually 1/8″ NPT. We apologize for any inconvenience this may havecaused.
Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
RL-SWJ50 | 12″ | 17.25″ | 11.75″ | 23 | 1.41 | 32 | 8 | 4 |
RL-SWJ75 | 12″ | 17.25″ | 11.75″ | 24.55 | 1.41 | 32 | 8 | 4 |
RL-SWJ100 | 12″ | 17.25″ | 11.75″ | 30.55 | 1.41 | 32 | 8 | 4 |
