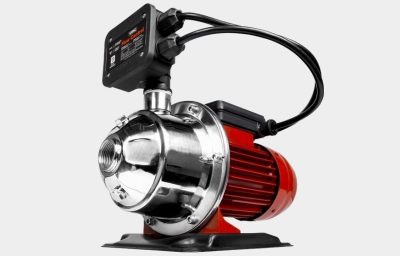

RED LION PRESSURE BOOSTING SYSTEM RBSS-75FC

APPLICATIONS

Ideal for homes with a municipal water source and incoming water pressure less than 45 psi. This pressure boosting system assists in maintaining steady pressure when more than one water fixture is in use.

FEATURES & BENEFITS

  • Package comes factory assembled and ready to install without the need for on-site wiring
  • Comes with convenient 6-foot, 115-volt power cord
  • Boosts water pressure with consistent output
  • Built-in control unit eliminates the need for a pressure switch and pressure tank, which saves space and reduces the cost of traditional booster systems
  • Run-dry protection protects the pump from damage if the water source is turned off
  • Auto-run feature flushes the system if idle for more than 24 hours preventing debris build-up and damage to the impeller
Click to rate this post!
[Total: 1 Average: 5]

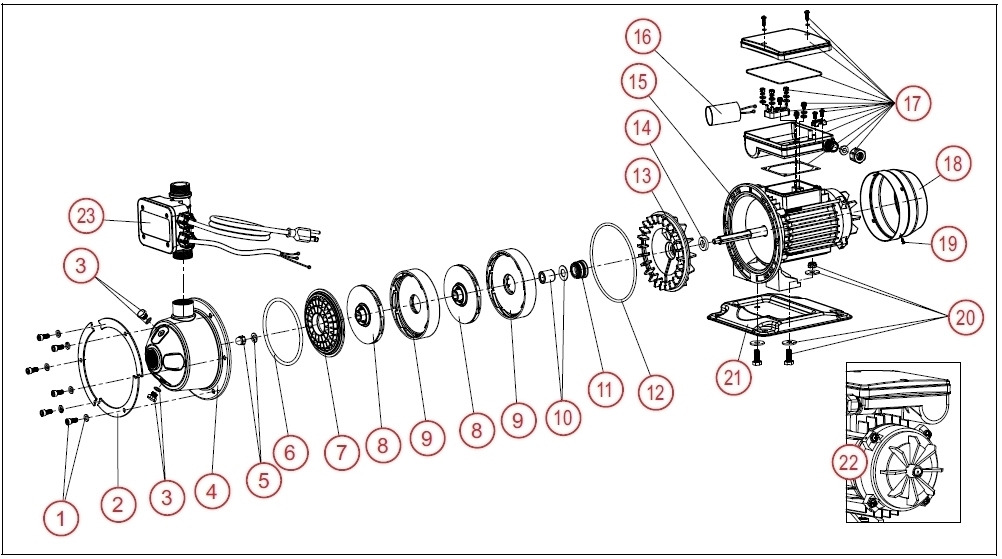

Exploded Parts

pressure-boosting-replacement-parts

Replacement Parts

Part Number

Description

Contents

305589007

Casing/Base Kit

1, 2, 3, 4, 21

305589008

Hardware Kit

1, 3, 5, 10, 19

305589009

Overhaul Kit

6, 7, 8 (qty 2), 9 (qty 2), 10, 11, 12, 13, 14

305589010

Impeller/Volute Kit

7, 8 (qty 2) 9 (qty 2), 13

305589011

Seal Kit

6, 12

Product Info

Model

Item Number

UPC

HP

Volts

Amps

Intake

Discharge

RBSS-75FC

97080708

0 10121 00056 8

3/4

115

9

1″ FNPT

1″ MNPT

Pressure Boosting Info

Incoming Water Pressure from Main Water Supply

10 PSI

20 PSI

30 PSI

40 PSI

50 PSI

Outgoing Water Pressure at 2 GPM Flow*

55 PSI

65 PSI

75 PSI

75 PSI

75 PSI

Pressure Boost at "X" PSI

Pressure Boost at

PSI

1 GPM

46

2 GPM

45

5 GPM

42

10 GPM

35

15 GPM

25

20 GPM

12

Carton Specifications

Model

Item Number

Length

Width

Height

Weight

Carton Cubes (cu ft)

Pallet Quantity

Quantitiy per Layer

Layers per Pallet

RBSS-75FC

97080708

10″

255 mm

15″

382 mm

15.2″

385 mm

20.28 lbs.

9.2 kg

1.3246

65

13

5
