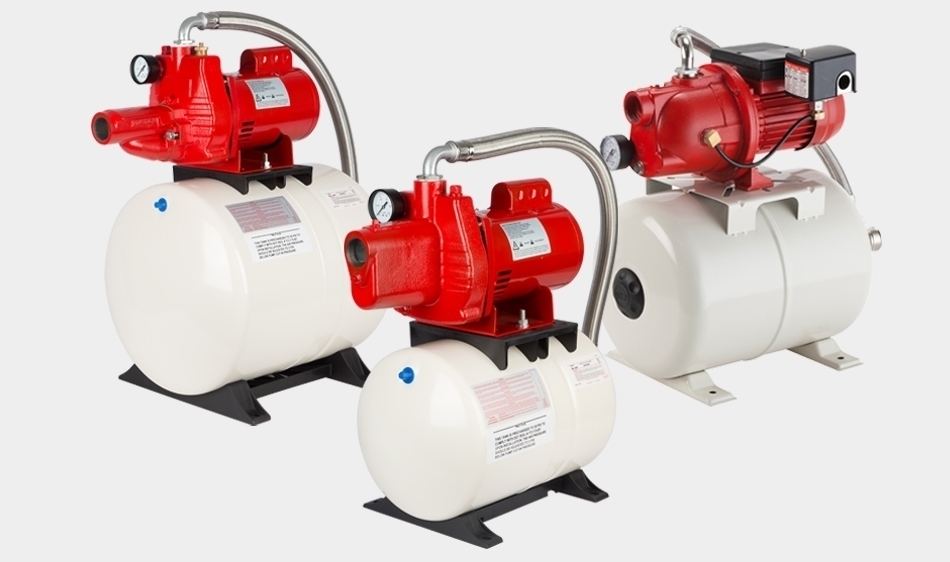

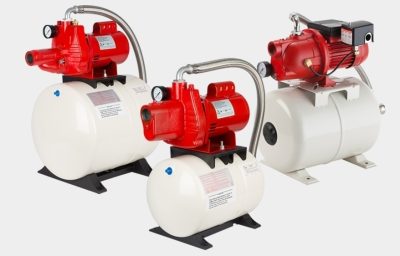

Red Lion Pump & Tank Systems
Click to rate this post!
[Total: 0 Average: 0]
APPLICATIONS
Ideal for the supply of fresh water to rural homes, farms, and cabins where compact system size and ease of installation are most important.
FEATURES & BENEFITS
- Jet pump and pre-charged pressure tank are factory assembled and ready to install
- Pump casing is made of rugged cast iron
- Pre-charged steel tank has a high grade diaphragm water chamber – 5.3 to 14 gallons
- Low profile, compact horizontal pressure tank
- 30/50 pressure switch
- Can be set for use with 115 Volts or 230 Volts
Product Info
| Model | Warranty | Item Number | UPC | HP | Gal. | Amps/Volts | Intake | Disc. | Pressure Gauge Port | Suct. Lift | No. of Pipes | Discharge Pressure (PSI) | Max PSI | Max Head | Max Flow GPM | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 40 | 50 | 60 | |||||||||||||||
| RL-SWJ50/ RL6H | 2yr Silver | 97080503 | 0 10121 14942 7 | 1/2 | 5.8 | 8.4A / 115V 4.2A / 230V | 1-1/4″ FNPT | 1″ FNPT | 1/8″ NPT | 5′ | 1 | 12.6 | 7.3 | 3.4 | 1 | 64 | 148′ | 12.6 |
| 15′ | 9.5 | 5.5 | 2.8 | 0.3 | 60 | 139′ | ||||||||||||
| 25′ | 5 | 4.1 | 1.7 | – | 57 | 133′ | ||||||||||||
| RJS-50/ RL6H | 3yr Silver | 602099 | 0 1012112241 3 | 1/2 | 5.3 | 11.8 A/115 V 5.9 A/230 V | 1-1/4″ FNPT | 1″ FNPT | 1/4″ NPT | 5′ | 1 | 12.3 | 11.2 | 6.9 | 2 | 65 | 150′ | 12.6 |
| 15′ | 9.6 | 9.4 | 4.7 | – | 60 | 139′ | ||||||||||||
| 25′ | 5.5 | 5.3 | 2.3 | – | 55 | 127′ | ||||||||||||
| RJS-50/ RL14H | 3yr Gold | 602014 | 0 1012112230 7 | 1/2 | 14 | 11.8A /115 V 5.9A /230 V | 1-1/4″ FNPT | 1″ FNPT | 1/4″ NPT | 5′ | 1 | 12.3 | 11.2 | 6.9 | 2 | 65 | 150′ | 12.6 |
| 15′ | 9.6 | 9.4 | 4.7 | – | 60 | 139′ | ||||||||||||
| 25′ | 5.5 | 5.3 | 2.3 | – | 55 | 127′ | ||||||||||||
| 5′ | 1 | 10.9 | 10.7 | 7.4 | 4.5 | 64 | 149′ | |||||||||||
| 15′ | 1 | 7.9 | 7.7 | 5.9 | 3.1 | 60 | 139′ | |||||||||||
| RJC-50/ RL6H | 3yr Silver | 602102 | 0 1012112240 6 | 1/2 | 5.3 | 17.6 A/115 V 8.8 A/230 V | 1-1/4″ FNPT | 1″ FNPT | 1/4″ NPT | 25′ | 2 | 9.6 | 7.4 | 2.4 | – | 56 | 129′ | 14.2 |
| 30′ | 2 | 5.8 | 3.7 | 1.8 | 0.2 | 62 | 143′ | |||||||||||
| 60′ | 2 | 4.3 | 2.7 | 1.4 | 0.3 | 63 | 146′ | |||||||||||
| 90′ | 2 | 1.6 | 0.7 | 0.1 | – | 51 | 119′ | |||||||||||
| 5′ | 1 | 14.2 | 10.2 | 5.9 | 1.8 | 64 | 149′ | |||||||||||
| 15′ | 1 | 13.5 | 9.1 | 5.9 | 1.8 | 60 | 139′ | |||||||||||
| RJC-50/ RL14H | 3yr Gold | 602063 | 0 1012112239 0 | 1/2 | 14 | 17.6 A/115 V 8.8 A/230 V | 1-1/4″ FNPT | 1″ FNPT | 1/4″ NPT | 25′ | 2 | 9.6 | 7.4 | 2.4 | – | 56 | 129′ | 14.2 |
| 30′ | 2 | 5.8 | 3.7 | 1.8 | 0.2 | 62 | 143′ | |||||||||||
| 60′ | 2 | 4.3 | 2.7 | 1.4 | 0.3 | 63 | 146′ | |||||||||||
| 90′ | 2 | 1.6 | 0.7 | 0.1 | – | 51 | 119′ | |||||||||||
Additional Features
| Model | Includes |
|---|---|
| RL-SWJ50/RL6H | Pressure Gauge |
| RJS-50/RL6H | Pressure Gauge, Foot Valve |
| RJS-50/RL14H | Pressure Gauge, Foot Valve |
| RJC-50/RL6H | Injector, Pressure Gauge, Foot Valve |
| RJC-50/RL14H | Injector, Pressure Gauge, Foot Valve |
Carton Specifications
| Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| RL-SWJ50 / RL6H | 22.85″ | 14.5″ | 25.25″ | 38.4 | 4.84 | 4 | 4 | 1 |
| RJS-50 / RL6H | 24.6″ | 14″ | 26″ | 55 | 5.18 | 4 | 4 | 1 |
| RJS-50 / RL14H | 23.5″ | 17″ | 32″ | 69 | 7.40 | 4 | 4 | 1 |
| RJC-50 / RL6H | 24.6″ | 12.6″ | 27″ | 62 | 4.84 | 4 | 4 | 1 |
| RJC-50 / RL14H | 23.5″ | 17″ | 32″ | 82 | 7.40 | 4 | 4 | 1 |
