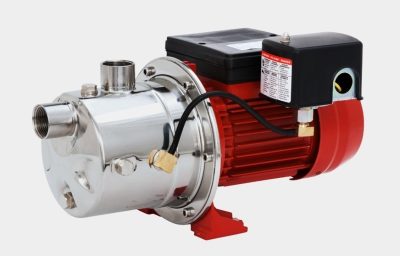

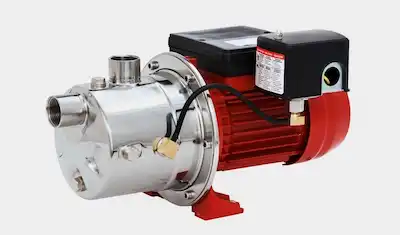

RED LION STAINLESS STEEL SHALLOW WELL JET PUMP RJS-75SS
APPLICATIONS
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25′.
FEATURES & BENEFITS
- Shallow well jet pump – ideal for use in pumping at depths of 25’or less
- Corrosion-resistant stainless steel pump housing – for years of service and reliability
- Includes factory pre-set 30/50 pressure switch – produces up to 50 psi with automatic shut-off
- 115/230 Volt heavy-duty motor – TEFC design with simple connection to existing power source
Click to rate this post!
[Total: 3 Average: 5]
Item | Description | Contents |
|---|---|---|
305589006 | Pressure Switch Kit | 1, 13, 14 |
305589005 | Shaft Seal Kit | 7 |
305589004 | Impeller Kit | 6 |
305589003 | Overhaul Kit | 5, 6, 7 |
305589002 | Hardware Kit | 2, 3, 8 |
305589001 | Case Seal Plate | 4, 9 |
| Discharge Pressure | |||||||||||||||
| Model | Item Number | UPC | HP | Amps/Volts | Intake | Disc. | Pressure Gauge Port | Suction Lift | 30 | 40 | 50 | 60 | Max Pressure PSI | Max Head | Max Flow GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| US Gallons Per Minute | |||||||||||||||
| RJS-75SS | 97080702 | 0 10121 14939 7 | 3/4 | 9.0A @ 115V 4.5A @ 230V | 1″ FNPT | 1″ FNPT | 1/8″ NPT | 5′ | 12.8 | 9.1 | 5.3 | 12.1 | 73 | 169′ | 12.8 |
| 15′ | 9.4 | 7.4 | 3.9 | 1.7 | 68 | 158′ | |||||||||
| 25′ | 4.9 | 4.9 | 2.7 | 0.2 | 65 | 150′ | |||||||||
*Correction*
The owner’s manual states the port for the pressure gauge is 1/4″ NPT – it is actually 1/8″ NPT. We apologize for any inconvenience this may have
caused.
| Model | Length | Width | Height | Weight | Carton Cubes(cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| RJS-75SS | 12.25″ | 17.5″ | 11.75″ | 18.5 | 1.46 | 24 | 6 | 4 |
Dimensions and weights have been estimated until stock is in place.
