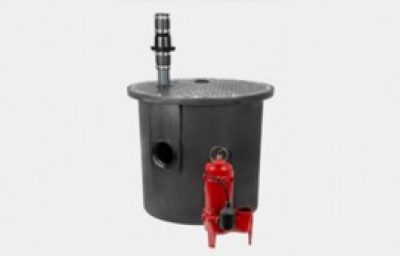

SEWAGE BASIN SYSTEM RL-WCS50TA-24
APPLICATIONS
Ideal for the collection and removal of sewage, effluent, drainage orseepage water from low lying areas.
FEATURES & BENEFITS
- Includes 24″ x 24″ polyethylene basin
- Meets gas tight and radon-free building code requirements
- 2″ full-flow sewage cast iron check valve
- Cover assembly and hardware
- Includes 1/2 hp sewage pump
- Discharge pipe – pump to basin cover
- Heavy-duty cast iron pump base and impeller
- Automatic piggyback float switch
|
Part Number |
Description |
Contents |
|---|---|---|
|
Red Lion Gas Tight Basin 24 x 24 with 4″ flange (Model: RL-GTB24) |
||
|
14942773 |
Red Lion 24″ Gas Tight Cover w/ Hardware, Fit’s 2″ Vent Pipe (Model: RL-GTC24) |
One 24″ cover, two 2″ pipe flanges, one 2- hole electric cord grommet, gasket tape roll, twelve lag screws (1/4″ x 1-1/4″) twelve 1/4″ washers |
|
14942748 |
Red Lion Cast Iron Sewage Pump – 1/2 hp, 115 Volt, 10′ cord (Model: RL-WC50TA) |
One sewage pump with tethered switch |
|
640171 |
Tethered piggyback float switch, 10′ cord |
One tethered piggyback float switch, stainless steel hose clamp, and mounting clip |
|
Model |
Item Number |
UPC |
HP |
Amps/Volts |
Discharge |
Cord Length |
Gallons Per Hour at Height |
Shut Off |
On/Off Levels |
Assembly Required |
Basin Diameter |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0′ |
5′ |
10′ |
15′ |
20′ |
|||||||||||
|
RL-WCS50TA-24 |
14942756 |
0 10121 15228 1 |
1/2 |
9/115 |
2″ FNPT |
10′ |
5600 |
4920 |
3720 |
1680 |
480 |
22′ |
On: 17.5″ Off: 7.5″ |
– |
24″ |
|
RL-GTB24 (Basin Only) |
14942772 |
029753 00507 0 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
24″ |
|
RL-GTC24 (Cover Only) |
14942773 |
029753 00508 7 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
24″ |
|
Model |
Length (in) |
Width (in) |
Height (in) |
Weight (lbs) |
Carton Cubes (cu ft) |
Pallet Quantity |
Qty. per Layer |
Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
|
RL-WCS50TA-24 |
28.75 |
28.75 |
34.75 |
76 |
16.62 |
1 |
1 |
1 |
|
RL-GTB24 (Basin Only) |
28.75 |
28.75 |
25.625 |
18 |
12.26 |
8 |
1 |
8 |
|
RL-GTC24 (Cover Only) |
28.625 |
29 |
1.5 |
8.5 |
0.65 |
32 |
1 |
32 |
|
Model |
Basin |
Discharge |
Pump HP |
Pump Volts |
|---|---|---|---|---|
|
RL-WCS50TA-24 |
Polyethylene |
2” FNPT |
1/2 |
9 |
