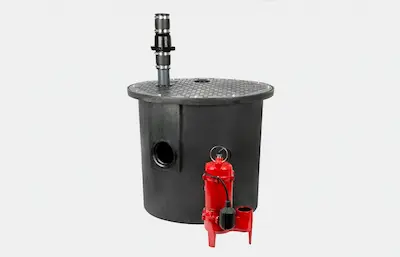

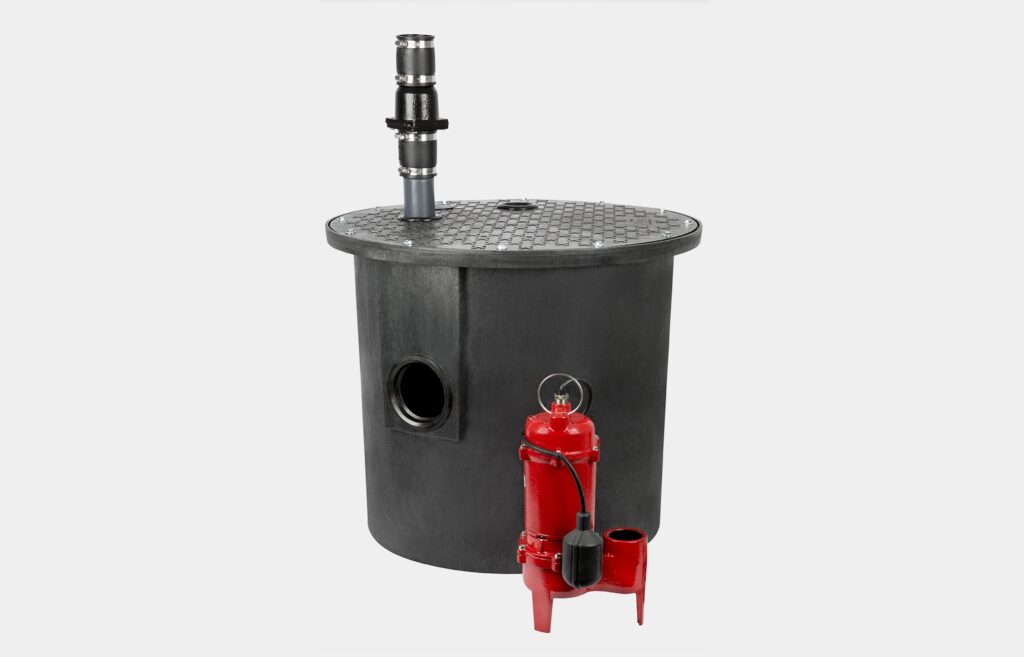

Sewage Basin System RL-WCS50TA-24

APPLICATIONS

Ideal for the collection and removal of sewage, effluent, drainage orseepage water from low lying areas.

FEATURES & BENEFITS

  • Includes 24″ x 24″ polyethylene basin
  • Meets gas tight and radon-free building code requirements
  • 2″ full-flow sewage cast iron check valve
  • Cover assembly and hardware
  • Includes 1/2 hp sewage pump
  • Discharge pipe – pump to basin cover
  • Heavy-duty cast iron pump base and impeller
  • Automatic piggyback float switch
Click to rate this post!
[Total: 0 Average: 0]

Replacement Parts

Part Number

Description

Contents

14942772

Red Lion Gas Tight Basin 24 x 24 with 4″ flange (Model: RL-GTB24)

One 24″ x 24″ diameter basin, one 4″ pipe flange

14942773

Red Lion 24″ Gas Tight Cover w/ Hardware,

Fit’s 2″ Vent Pipe (Model: RL-GTC24)

One 24″ cover, two 2″ pipe flanges, one 2- hole electric cord grommet, gasket tape roll, twelve lag screws (1/4″ x 1-1/4″) twelve 1/4″ washers

14942748

Red Lion Cast Iron Sewage Pump – 1/2 hp, 115 Volt, 10′ cord

(Model: RL-WC50TA)

One sewage pump with tethered switch

640171

Tethered piggyback float switch, 10′ cord

One tethered piggyback float switch, stainless steel hose clamp, and mounting clip

Product Info

Model

Item Number

UPC

HP

Amps/Volts

Discharge

Cord Length

Gallons Per Hour at Height

Shut Off

On/Off Levels

Assembly Required

Basin Diameter

0′

5′

10′

15′

20′

RL-WCS50TA-24

14942756

0 10121 15228 1

1/2

9/115

2″ FNPT

10′

5600

4920

3720

1680

480

22′

On: 17.5″

Off: 7.5″

24″

RL-GTB24 (Basin Only)

14942772

029753 00507 0

24″

RL-GTC24 (Cover Only)

14942773

029753 00508 7

24″

Carton Specifications

Model

Length

(in)

Width

(in)

Height

(in)

Weight (lbs)

Carton Cubes (cu ft)

Pallet Quantity

Qty. per Layer

Layers per Pallet

RL-WCS50TA-24

28.75

28.75

34.75

76

16.62

1

1

1

RL-GTB24 (Basin Only)

28.75

28.75

25.625

18

12.26

8

1

8

RL-GTC24 (Cover Only)

28.625

29

1.5

8.5

0.65

32

1

32

Specifications

Model

Basin

Discharge

Pump HP

Pump Volts

RL-WCS50TA-24

Polyethylene

2” FNPT

1/2

9
