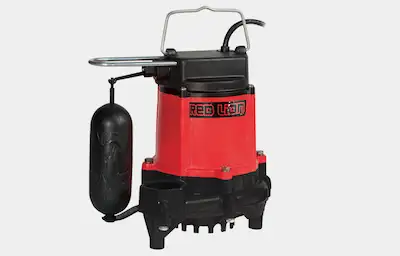

SNAP-ACTION CAST IRON SUMP/EFFLUENT PUMPS


APPLICATIONS

Ideal for average-to-high volume water and effluent removal in residential spaces such as basements, laundry facilities and crawlspaces.

FEATURES & BENEFITS

  • Automatic submersible cast iron sump/effluent pump
  • Heavy-duty cast iron construction for rapid heat dissipation and extended life
  • Clog-resistant design – capable of passing 1/2″ diameter semi-solids
  • Integrated snap-action float switch – reliable automatic operation for use in basins 11″ in diameter or greater
  • On: 8″ – 11″, Off: 2″ – 5″
  • 3 year warranty
  • Not suitable for pond use

Part Number

Description

640171

Tethered Float Switch, Piggyback, 10 ft (3 m)

640172

Tethered Float Switch, Piggyback, 20 ft (6.1 m)

14942758

RL-SC-RVS Vertical Float Switch, Piggyback, 10 ft (3 m)

Model

Item Number

UPC

HP

Switch

Amps/Volts

Cord Length

Gallons Per Hour at Height

Shut-Off

On/Off Levels

Min Basin Diameter

0'

5'

10'

15'

20'

30'

RL-33SC

14942652

0 10121 14579 5

1/3

Snap-Action

5/115

10'

3420

3200

3000

2500

2200

28'

On: 8 – 11"

Off: 2-5"

11" or more

RL-50SC

14942653

0 10121 14580 1

1/2

6.5/115

Not tested

4000

3420

3090

2800

1680

36'

Model

Length

Width

Height

Weight (lbs)

Carton Cubes (cu ft)

Pallet Quantity

Qty. per Layer

Layers per Pallet

RL-33SC

9.75"

11"

12.75"

27.75

0.791

48

16

3

RL-50SC

10.25"

11.5"

13.75"

28.5

0.937

36

12

3

Model

HP

Amps

Voltage

Float Type

On/Off Levels

Minimum Basin Diameter

RL-SC33T

1/3

4.3

115

Tethered

13” (330 mm)/5” (127 mm)

18” (457 mm)

RL-SC33V

1/3

4.3

115

Vertical

7” (178 mm)/2.25” (57 mm)

15” (381 mm)

RL-SC50T

1/2

5.3

115

Tethered

13” (330 mm)/5” (127 mm)

18” (457 mm)

RL-SC50V

1/2

5.3

115

Vertical

7” (178 mm)/2.25” (57 mm)

15” (381 mm)

Gallons/Liters per Hour

At Height: (Head)

5 ft (1.5 m)

10 ft (3 m)

15 ft (4.5 m)

20 ft (6.1 m)

Shut Off

RL-SC33T

3000 / 11356

2460 / 9312

1860 / 7041

960 / 3634

25 ft (7.6 m)

RL-SC33V

3000 / 11356

2460 / 9312

1860 / 7041

960 / 3634

25 ft (7.6 m)

RL-SC50T

3840 / 14536

3000 / 11356

2220 / 8404

1440 / 5451

28 ft (8.5 m)

RL-SC50V

3840 / 14536

3000 / 11356

2220 / 8404

1440 / 5451

28 ft (8.5 m)

Discharge Size

1-1/2" FNPT

Intake Size

3/8" (9.5 mm) screened opening

Pump Housing

Cast iron (including volute and screen)

Impeller

Vortex design

Motor

Single phase PSC with automatic reset thermal overload protection

Hardware

300 series stainless steel

Bearings

Ball bearings

Pump Shaft Seal

Mechanical, spring-loaded, stationary carbon with Nitrile boot and rotating ceramic seat

Cooling

The motor housing contains oil to cool the motor and to lubricate the bearings and seals. These pumps can be operated with the motor housing partially exposed for extended periods of time. However, for the best cooling and longest motor life, the liquid level being pumped should normally be above the top of the pump housing.
