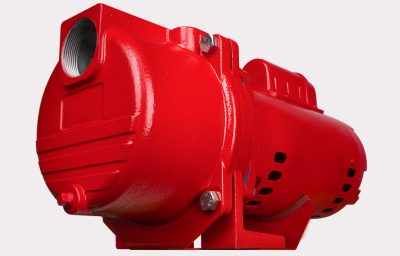

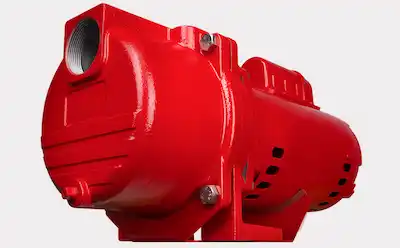

SPRINKLER PUMP – RL-SPRK

APPLICATIONS

Ideal for both residential and commercial lawn and turf sprinkling systems.

FEATURES & BENEFITS

  • Rugged cast iron casing and pump base for durability and longlife
  • Easy to prime up to 25’ requiring no additional priming after initial fill
  • Repair kits available for easy replacement
  • Brass impeller conversion kits available for easy pump upgrade
  • *BR models are configured with brass impeller
Click to rate this post!
[Total: 7 Average: 4.6]

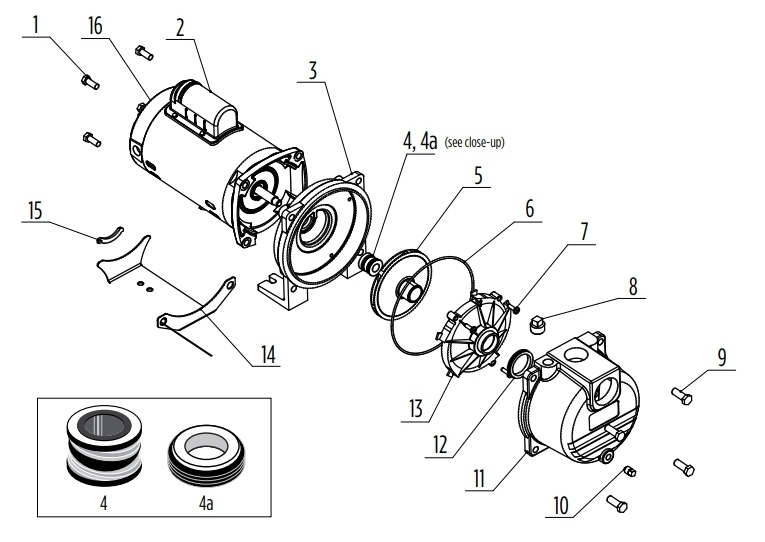

RLSPRK Exploded Parts

replacement-part-sprinkle

RLSPRK Replacement Parts

Item #

Description

Where Used

Contents

305606007

Overhaul Kit

RL-SPRK100

4, 4a, 5, 6, 7, 12

305606008

Overhaul Kit

RL-SPRK150

4, 4a, 5, 6, 7, 12

305606009

Overhaul Kit

RL-SPRK200

4, 4a, 5, 6, 7, 12

305606010

Overhaul Kit

RL-SPRK150-BR

4, 4a, 5, 6, 7, 12

305606011

Overhaul Kit

RL-SPRK200-BR

4, 4a, 5, 6, 7, 12

305606001

Casing Kit

All RL-SPRK

11

305606012

Seal Kit

All RL-SPRK

4, 4a, 6, 12

305606013

O-Ring, Gasket, Hardware Kit

All RL-SPRK

1, 6, 8, 9, 10, 15

305606002

Impeller/Diffuser Kit

RL-SPRK100

5, 6, 7

305606003

Impeller/Diffuser Kit

RL-SPRK150

5, 6, 7

305606004

Impeller/Diffuser Kit

RL-SPRK200

5, 6, 7

305606005

Impeller/Diffuser Kit

RL-SPRK150-BR

5, 6, 7

305606006

Impeller/Diffuser Kit

RL-SPRK200-BR

5, 6, 7

RLSPRK Product Info

Model

Item #

UPC

HP

Volts

Amps

Intake

Discharge

Discharge Pressure

– PSI at 5′ Lift

10 20 30 40

Gallons Per Minute

Max.

PressurePSI

Max. Flow GPM

RL-SPRK100

97101001

0 10121 00139 8

1

115/230

14 A @ 115 V/

7 A @ 230 V

2″ FNPT

1-1/2″ FNPT

63

54

38

11

45

63

RL-SPRK150

97101501

0 10121 00140 4

1.5

115/230

18.6 A @ 115 V /

9.3 A @ 230 V

2″ FNPT

1-1/2″ FNPT

71

60

44

15

44

71

RL-SPRK200

97102001

0 10121 00141 1

2

230

10.9 A @ 230 V

2″ FNPT

1-1/2″ FNPT

76

75

65

47

49

76

RL-SPRK150-BR

97101502

0 10121 00142 8

1.5

115/230

18.6 A @ 115 V /

9.3 A @ 230 V

2″ FNPT

1-1/2″ FNPT

71

60

44

15

41

71

RL-SPRK200-BR

97102002

0 10121 00143 5

2

230

10.9 A @ 230 V

2″ FNPT

1-1/2″ FNPT

77

75

64

48

47

77

RLSPRK Carton Specifications

Model

Length

Width

Height

Weight (lbs)

Carton Cubes (cu ft)

Pallet Qty

Qty Per Layer

Layers Per Pallet

RL-SPRK100

11.5″

22″

12.25″

55.2

1.79

18

3

6

RL-SPRK150

11.5″

22″

12.25″

64.6

1.79

18

3

6

RL-SPRK200

11.5″

22″

12.25″

64.3

1.79

18

3

6

RL-SPRK150-BR

11.5″

22″

12.25″

66.3

1.79

18

3

6

RL-SPRK200-BR

11.5″

22″

12.25″

66.3

1.79

18

3

6
