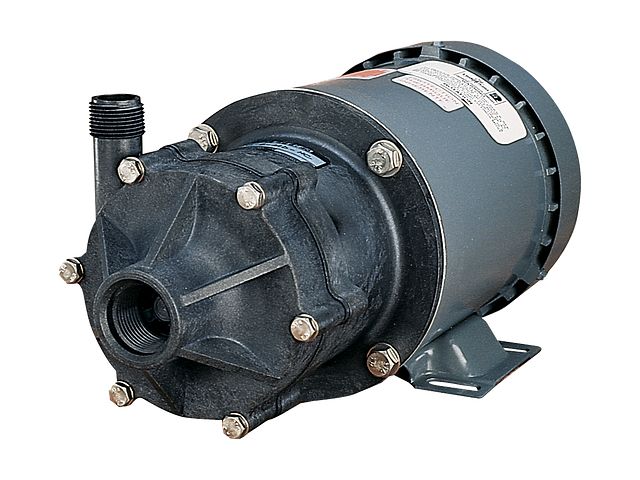

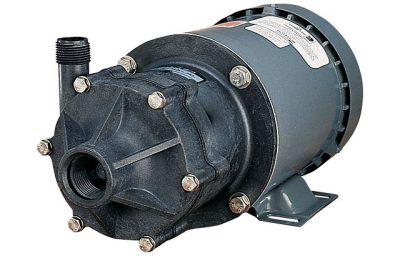

The TE-5.5-MD-HC Series design offers the best combination of durability, safety, and performance for a wide range of chemical process applications. These magnetic drive pumps feature separate impellers and inner magnets, maximizing the flexibility and application of the product. With a proven dry run capability of up to 8 hours, the TE-5.5-MD-HC can withstand highly corrosive chemical process conditions.
These magnetic drive pumps have a totally enclosed fan-cooled (TEFC) motor for use in dirty and damp environments. The impeller is turned with magnets to eliminate the possibility of seal wear and leakage for longer service life and greater return on investment. The TE-5.5-MD-HC can handle temperatures up to 180 °F (82.2 °C). It’s able to pump 1500 gallons per hour at 5′ head.
| Capacity | 32 gpm @ 1′ |
| Shut Off | 40.5′ (12.3 m) |
| Max. Liquid Temp. | 180 °F (82.2 °C) |
| Discharge | 3/4″ MNPT (19 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 5.6/5 A 230 V, 50/60 Hz, 2.8/2.5 A |
| Head | GPM (LPM) |
| 5′ | 32 (121.1) |
| 10′ | 30 (113.6) |
| 20′ | 26 (98.4) |
| 30′ | 19 (71.9) |
| 40′ | 6 (22.7) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 585604 | TE-5.5-MD-HC | 230 VAC | 32 gpm / 1920 gph | 40.5 ft |
