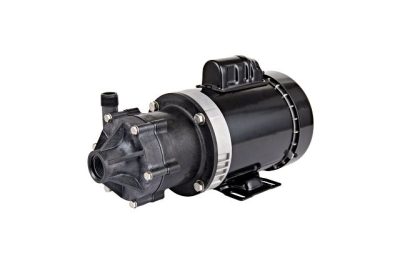

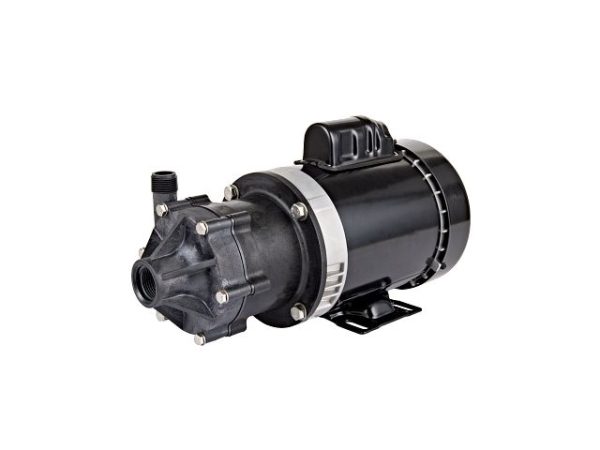

The TE-6-MD-HC is designed to transfer highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump’s material construction. The pump also utilizes pure carbon bushing in the impeller to enable the pump to run dry for periods up to eight hours.
The rigorous TE-6-MD-HC is designed to handle highly corrosive fluids with superior efficiency. This chemical transfer pump is capable of producing up to 38GPM at 22.1 PSI maximum pressure. This pump utilizes a glass-reinforced polypropylene housing that is designed with a 1/2 hp thermally-enclosed, fan-cooled split-phase motor, Fluoroelastomer (FKM), and 1″ FNPT fittings.
| Capacity | 38 gpm @ 1′ |
| Shut Off | 51′ (15.5 m) |
| Max. Liquid Temp. | 180 °F (82.2 °C) |
| Discharge | 3/4″ MNPT (19 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 11.6/9.4 A 230 V, 50/60 Hz, 5.8/4.7 A |
| Head | GPM (LPM) |
| 5′ | 38 (143.8) |
| 10′ | 36.7 (138.9) |
| 20′ | 31.7 (120) |
| 30′ | 28.3 (107.1) |
| 40′ | 21.7 (82.1) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 586604 | TE-6-MD-HC | 115 VAC / 230 VAC | 38 gpm / 2280 gph | 51 ft | |
| 586650 | TE-6-MD-HC | 230 VAC / 460 VAC | 38 gpm / 2280 gph | 51 ft |
