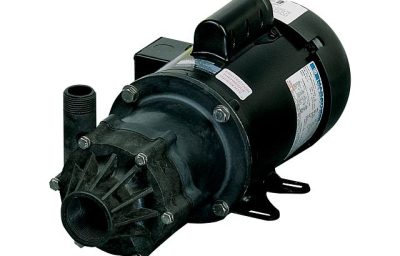

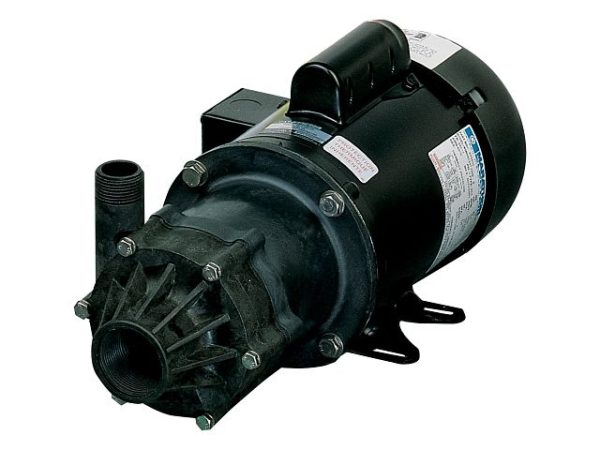

The TE-7-MD-HC from Little Giant is a magnetic drive pump specifically designed to handle strong acids in industrial, commercial, or residential applications. The TE-7-MD-HC is a resilient collaborator for pumping heavy corrosive or abrasive fluids, and is engineered for stringent chemical transfer or circulating processes.
The TE-7-MD-HC Series features leakproof, seal-less magnetic drives and is designed for in-line, non-submersible use. These pumps feature polyphenylene sulfide (e.g., Ryton), Viton, carbon, and ceramic parts for superior corrosion resistance. Each pump is powered by a thermally protected, totally enclosed fan-cooled permanent split capacitor motor with ball bearings. The pump’s ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear resistance and trouble-free service.
| Capacity | 53 gpm @ 1′ |
| Shut Off | 58.9′ (17.9 m) |
| Max. Liquid Temp. | 200 °F (93.3 °C) |
| Discharge | 1″ MNPT (25.4 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 10.4/11.8 A, Single-Phase 230 V, 50/60 Hz, 5.2/5.9 A, Single Phase 230 V, 50/60 Hz, 2.4/2.9 A, Three-Phase 460 V, 50/60 Hz, 1.2/1.5 A, Three-Phase |
| Head | GPM (LPM) |
| 1′ | 53 (200.6) |
| 10′ | 46.7 (176.8) |
| 25′ | 40 (151.4) |
| 40′ | 30.8 (116.6) |
| 50′ | 21.6 (81.8) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 587010 | TE-7-MD-HC | 230 VAC | 53 gpm / 3180 gph | 58.9 ft |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 587040 | TE-7 | 230 VAC / 460 VAC | 53 gpm / 3180 gph | 58.9 ft |
| Item | Model | Description |
|---|---|---|
| 587103 | 7-MD | TE-7-MD-HC Magnetic Drive Pump End Only, 53 gpm, No Motor Included |
