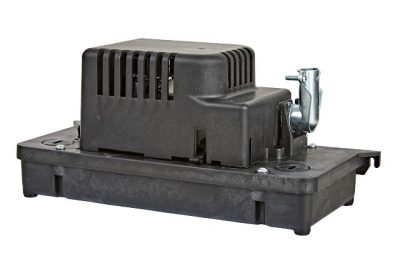

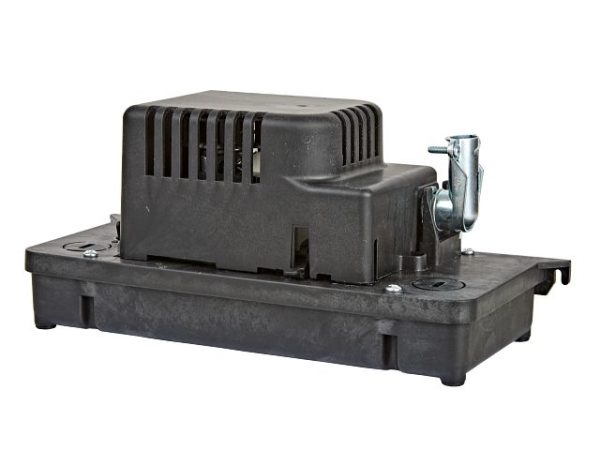

The VCCA-20-P is Little Giant’s low-profile condensate pump specifically designed for plenum applications with restricted space where gravity drainage is not possible or practical. It is ideal for the automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment. Suitable for use in air handling spaces.
Featuring a vertical centrifugal pump design, the Plenum Series line of low profile condensate pumps features a 1/30 hp thermal protected motor with stainless steel motor shaft. The pump is controlled by a float switch mechanism, which automatically starts and stops the pump. It also includes a high-water level switch, which opens a thermostat circuit when the pump reservoir is full, stopping the production of condensate. The Plenum Series model is available in both 115 or 230 volts.
| Capacity | 80 gph @ 1′ |
| Shut Off | 20′ (6.1 m) / 115 V 17′ (5.2 m) / 230 V |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 3/8″ barbed (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1.5 A 230 V, 50/60 Hz, 0.6/.05 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 1′ | 80 (303) |
| 5′ | 70 (265) |
| 10′ | 45 (171) |
| 18′ | 10 (38) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 554221101 | VCCA-20-P (115V) | 115 VAC | 20 ft | Yes | No |
| 554222101 | VCCA-20-P (230V) | 230 VAC | 17 ft | Yes | No |
