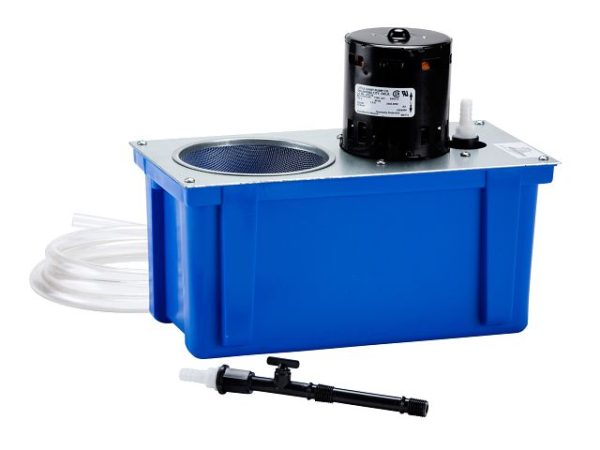

Little Giant VMC Series Machine Tool Coolant Pump
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
For use on small drill presses, tool grinders, tapping machines, and small lathes, the VMC Series machine tool coolant pump is a 1-gallon coolant unit with a pump included. The flow of coolant liquids can be regulated to any desired amount or completely shut off without harmful effects to the machine tool coolant pump.
Features & Benefits:
- 1-gallon oil-resistant polyethylene tank
- 115 Volts
- Volute cover
- Unit takes 1/2″ ID tubing to 1/4″ MNPT
- Includes spray nozzle and 20 ft tubing
- Screen chip collector
Overview
The VMC Series for machine tool coolant pump applications features a rugged, 1-gallon oil-resistant tank with baffle to direct continuous flow. It’s capable of 108 gph at 1′. The screen chip collector from the machine tool coolant pump can be easily removed for maintenance cleaning.
Specifications
| Capacity | 108 gph @ 1′ |
| Shut Off | 11.5′ (3.5 m) |
| Impeller | Nylon |
| Electrical | 115 V |
| Tank Size | 1 gallon |
| Tank Material | Polypropylene |
Performance
| Head | GPH (LPH) |
| 1′ | 108 (408.8) |
| 3′ | 100 (378.5) |
| 6′ | 86 (325.5) |
| 9′ | 60 (227.1) |
Order Information
VMC-1 Series Machine Tool Coolant Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Flow Rate At 1ft |
|---|---|---|---|---|
| 560612 | VMC-1 | 115 VAC | 1.8 gpm / 108 gph |
Send us your model number and we will confirm fit, price, and availability.
