PDI3A Engine Honda gx120ut3qx2 Flywheel cpl
Not sure which part you need? Contact us for assistance.
Wacker Neuson PDI3A Honda GX120UT3QX2 Flywheel CPL Repair Parts are used in the engine assembly of selected PDI3A diaphragm pumps equipped with the Honda GX120UT3QX2 engine. Ken’s Distributing supplies individual flywheel-area components by Wacker Neuson part number so contractors, repair shops, municipalities, and equipment owners can identify the correct component before ordering.
Use the exploded-parts diagram and table below to identify the flywheel, fan, Woodruff key, starter pulley, nut, and related engine components. Confirm the Wacker Neuson pump model, Honda engine model, and existing part number before ordering.

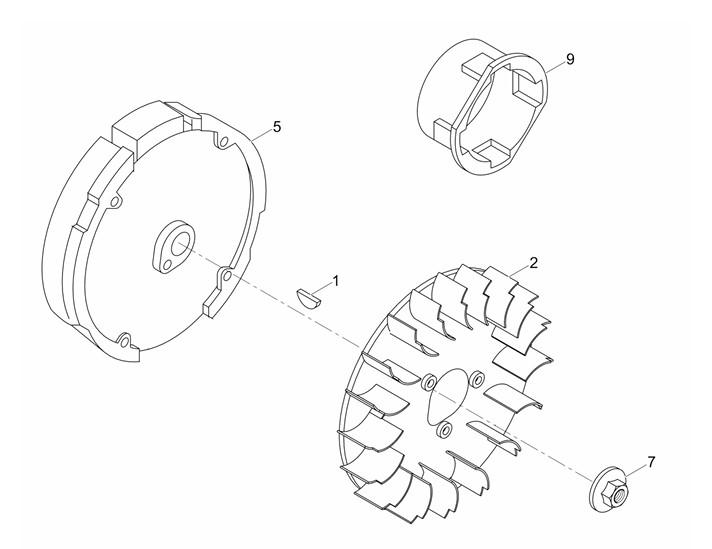

PDI3A Honda GX120UT3QX2 Flywheel Exploded Parts
| Item | Item No. | Description | Information | Qty. | Unit |
|---|---|---|---|---|---|
| 1 | 5100056809 | Woodruff Key | 1 | pc | |
| 2 | 5000070976 | Fan | 1 | pc | |
| 5 | 5100056820 | Flywheel CPL. | 1 | pc | |
| 7 | 5100056821 | Nut | 16M | 1 | pc |
| 9 | 5100056822 | Starter Pulley | 1 | pc |
Key PDI3A Flywheel Components
The flywheel area of the Honda GX120UT3QX2 engine contains several components that work together during engine starting and operation.
- 5100056809, Woodruff Key: Helps locate the flywheel correctly on the crankshaft.
- 5000070976, Fan: Supports engine cooling during operation.
- 5100056820, Flywheel CPL.: Main flywheel assembly for the engine configuration shown.
- 5100056821, Nut: Secures the flywheel assembly.
- 5100056822, Starter Pulley: Part of the recoil starting system.
Why the Flywheel Assembly Matters
The engine flywheel helps maintain rotational momentum during operation and works with the ignition system and crankshaft assembly. Damage to the flywheel, key, mounting hardware, or related components can affect engine starting and operation.
Inspect the flywheel area if you experience symptoms such as:
- Difficult engine starting
- Unusual vibration
- Abnormal metallic noise from the flywheel or starter area
- Visible damage to the flywheel or starter pulley
- Damage to the Woodruff key or crankshaft keyway
These symptoms can have more than one cause, so inspect the complete engine assembly before replacing a component.
How to Identify the Correct PDI3A Flywheel Part
Before ordering a replacement flywheel or related engine component, confirm the equipment information carefully.
- Confirm the pump model. Verify that the pump is a Wacker Neuson PDI3A.
- Confirm the engine model. Check that the engine identification matches Honda GX120UT3QX2.
- Use the exploded-parts diagram. Locate the item number for the component being replaced.
- Match the part number. Compare the Wacker Neuson item number with the existing component and service information.
If the identification plate or existing part number is difficult to read, photographs of the engine and removed component can help Ken’s Distributing identify the appropriate replacement.
Wacker Neuson PDI3A and Honda GX120UT3QX2
The Wacker Neuson PDI3A is a diaphragm pump used for construction dewatering, muddy water, sediment-laden water, and other demanding jobsite applications. The pump configuration covered on this page uses the Honda GX120UT3QX2 engine.
Because this page covers engine flywheel components, confirm both the Wacker Neuson pump model and the Honda engine model. Engine parts should not be selected from the pump model alone.
Flywheel Installation Considerations
Flywheel service requires correct alignment and proper fastening. Follow the Honda and Wacker Neuson service information for the exact engine and pump configuration.
General service considerations include:
- Disconnect the spark plug before beginning service.
- Secure the equipment so the engine cannot move unexpectedly.
- Inspect the crankshaft taper and keyway for damage.
- Inspect the Woodruff key before reassembly.
- Align the flywheel correctly on the crankshaft.
- Use the specified tightening procedure and torque for the flywheel nut.
- Reinstall the starter pulley and covers correctly before operation.
Do not reuse damaged keys, fasteners, or flywheel components. If the crankshaft or keyway is damaged, additional engine service may be required.
OEM and Aftermarket Engine Parts
Some engine repairs may have OEM or aftermarket part options. The appropriate choice depends on the specific component, equipment requirements, availability, and service objectives.
| Part Type | Description | Considerations |
|---|---|---|
| OEM | Produced by or for the original equipment manufacturer | Identified according to the manufacturer’s part-number system and equipment specifications |
| Aftermarket | Produced by a third-party manufacturer | Quality and specifications can vary, so the individual part should be evaluated carefully |
For flywheel and ignition-related components, use the specific part information required for the Honda GX120UT3QX2 engine configuration shown on this page.
PDI3A Engine Maintenance Tips
Routine inspection of the engine can help identify wear before it causes unexpected downtime.
- Check engine oil according to the Honda maintenance schedule.
- Inspect the air filter and service it according to operating conditions and manufacturer recommendations.
- Keep the flywheel and cooling areas free of heavy debris buildup.
- Inspect the starter system, flywheel, key, and mounting hardware if starting behavior changes.
- Store the pump in a dry, protected location when practical.
- Follow the Honda and Wacker Neuson service schedules for the specific equipment configuration.
Why Order Wacker Neuson PDI3A Parts from Ken’s Distributing?
Ken’s Distributing supplies water pump and engine-related service parts to contractors, repair shops, municipalities, rental operations, and equipment owners. Detailed exploded-parts information helps customers identify components by model and part number rather than relying on appearance alone.
- Wacker Neuson part-number identification assistance
- Exploded-parts diagrams for easier component selection
- Honda GX120UT3QX2 engine part information for the PDI3A configuration
- Support using photographs and existing part numbers
- Replacement components for routine maintenance and engine repairs
Frequently Asked Questions
What flywheel is listed for the Wacker Neuson PDI3A Honda GX120UT3QX2 engine?
The supplied parts information lists 5100056820 as the Flywheel CPL. for the engine configuration shown on this page.
What Woodruff key is listed with this flywheel assembly?
The exploded-parts information lists part number 5100056809 as the Woodruff key.
What starter pulley is listed for this engine configuration?
The table lists part number 5100056822 as the starter pulley.
How do I know whether this flywheel is correct for my pump?
Confirm that your equipment is a Wacker Neuson PDI3A equipped with the Honda GX120UT3QX2 engine, then compare the part number with the engine parts information and the existing component before ordering.
Can I replace the flywheel myself?
Flywheel replacement may be appropriate for someone with the correct tools and mechanical experience. Follow the Honda and Wacker Neuson service procedures for the specific equipment. If you are uncertain about flywheel removal, crankshaft condition, ignition components, or torque requirements, use qualified service assistance.
Should the Woodruff key be inspected during flywheel replacement?
Yes. Inspect the Woodruff key and crankshaft keyway whenever the flywheel is removed. Replace damaged components before reassembly.
Where can I find more Wacker Neuson PDI3A parts?
Visit the Wacker Neuson PDI3A Diaphragm Pump Parts section or browse the full Wacker Neuson Diaphragm Pump Parts collection.
