PDT2A Pump Assembly Repair Parts
Not sure which part you need? Contact us for assistance.
Wacker Neuson PDT2A Pump Assembly Repair Parts help keep PDT2A diaphragm pumps operating reliably in construction dewatering, groundwater removal, muddy water, and other demanding pumping applications. Ken’s Distributing supplies Wacker Neuson pump assembly components by part number so contractors, repair shops, municipalities, and equipment owners can identify the correct component before ordering.
Use the exploded-parts diagram and table below to locate the item number, Wacker Neuson part number, description, and quantity required for your repair. Always confirm the pump model and existing component before ordering.

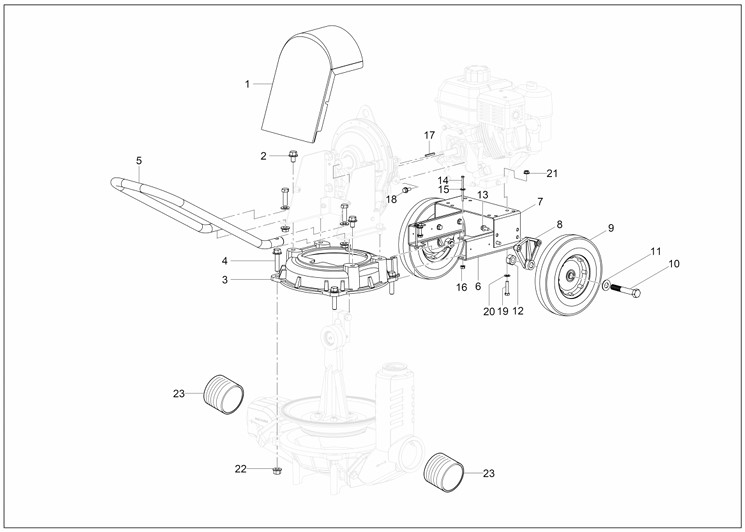

Wacker Neuson PDT2A Pump Assembly Exploded Parts
| Item | Item No. | Description | Information | Pcs | Unit |
|---|---|---|---|---|---|
| 1 | 5100075488 | Guard | 1 | pc | |
| 2 | 5100075497 | Hexagonal Flange Head Screw | 4 | pc | |
| 3 | 5000179863 | Pump Base | PD3 | 1 | pc |
| 3 | 5000179864 | Pump Base | PD2 | 1 | pc |
| 4 | 5100075498 | Hex Head Bolt | 4 | pc | |
| 5 | 5100082918 | Handle | 4 | pc | |
| 6 | 5200005885 | Hexagon Nut | 1 | pc | |
| 7 | 5000179857 | Mount | 2 | pc | |
| 8 | 5000179859 | Engine Mount | 1 | pc | |
| 9 | 5000179855 | Bracket | 2 | pc | |
| 10 | 5000179854 | Wheel | 2 | pc | |
| 11 | 5000179852 | Bolt | 5/8-18 x 4.00 in | 2 | pc |
| 12 | 5000179853 | Washer | 5/8 in | 2 | pc |
| 13 | 5000179856 | Nut | 5/8-18 | 2 | pc |
| 14 | 5000179860 | Flange Bolt | 5/16-18 x 3/4 in | 4 | pc |
| 15 | 5000179862 | Bolt | 1/4-20 x 3.00 in | 2 | pc |
| 16 | 5000179861 | Washer | 1/4 in | 2 | pc |
| 17 | 5000179858 | Hexagon Nut | 1/4-20 | 2 | pc |
| 18 | 5000180294 | Key | 3/16 x 3/16 x 1-1/2 | 1 | pc |
| 19 | 5000182013 | Screw 5/16-24 x 1, HHCS | 4 | pc | |
| 20 | 5000182014 | Screw | 5/16-18 x 1-1/2 in | 4 | pc |
| 21 | 5000182015 | Flat Washer | 5/16 in | 4 | pc |
| 22 | 5000182016 | Hexagon Nut | 5/16-18 | 4 | pc |
| 23 | 5000180248 | Nipple Fitting | PD3, 3 in NPT/NPT | 1 | pc |
| 23 | 5000180261 | Strainer | PD3 | 1 | pc |
| 23 | 5000180262 | Strainer | PD2, 2 in | 1 | pc |
| 23 | 5100075500 | Fitting NPT, Pack of 2 | PD2 | 1 | pc |
