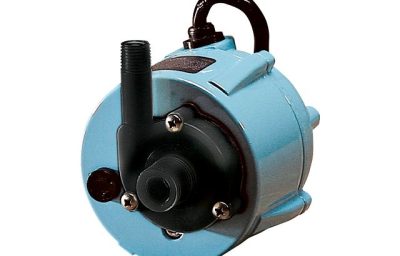

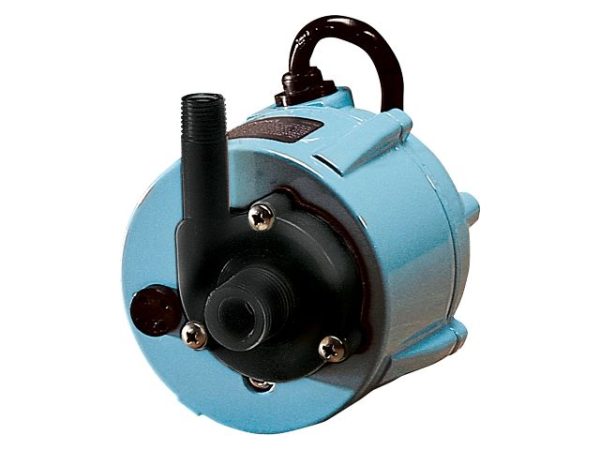

For submersed or in-line use, the 1-42 Series is a compact but mighty dual-purpose small oil-filled submersible pump. This oil-filled, direct-drive pump works for water transfer or recirculation applications and water displays. The 1-42 Series small oil-filled submersible pump delivers both durability and reliability in a small package.
A continuous duty industrial pump, the 1-42 small submersible pump highlights an oil-filled motor with thermal overload protection. Features a 1/4″ MNPT discharge with 1/2″ MNPT and 1/4″ FNPT intake. This small submersible pump model is constructed with durable epoxy-coated cast aluminum housing with nylon volute, nylon impeller, and nitrile shaft seal.
| Capacity | 205 gph @ 1′ |
| Shut Off | 7.4′ (2.2 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.1 A |
| Head | GPH (LPH) |
| 1′ | 205 (776) |
| 3′ | 168 (635.9) |
| 5′ | 120 (454.2) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 501203 | 1-42 | 115 VAC | 3.41 gpm / 205 gph | 7.4 ft | 6 ft |
