The 1.5-MDI-SC Series is for the circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other moderately corrosive chemicals and solutions compatible with the pump’s material of construction.

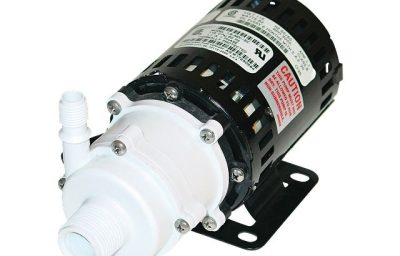

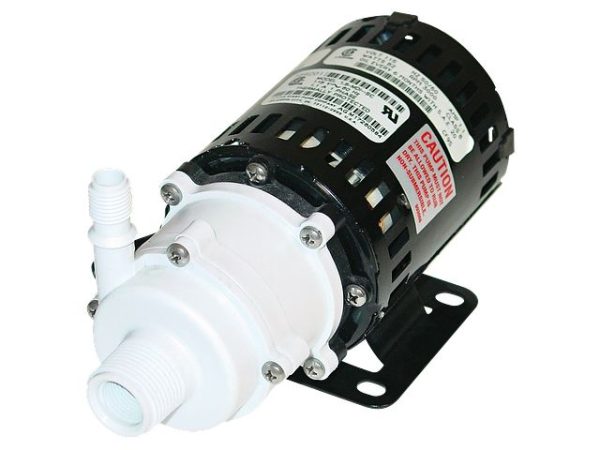

Powered by a 1/35 horsepower open, fan-cooled motor, the 1.5-MDI-SC Series from Little Giant is constructed of durable materials to handle moderately corrosive chemicals. Its glass-filled polypropylene magnetic housing, volute, and impeller are excellent for chemical resistance. The 1.5-MDI-SC is also equipped with ceramic shaft and thrust washers that are 99.5% pure alumina for excellent wear resistance and trouble-free service.
| Capacity | 325 gph @ 1′ |
| Shut Off | 12.5′ (3.8 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 60 Hz, 1.1 A 230 V, 50/60 Hz, 0.7/0.6 A |
| Head | GPH (LPH) |
| 1′ | 325 (1230.3) |
| 3′ | 300 (1135.6) |
| 6′ | 260 (984.2) |
| 8′ | 200 (757.1) |
