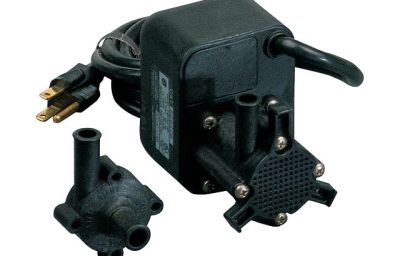

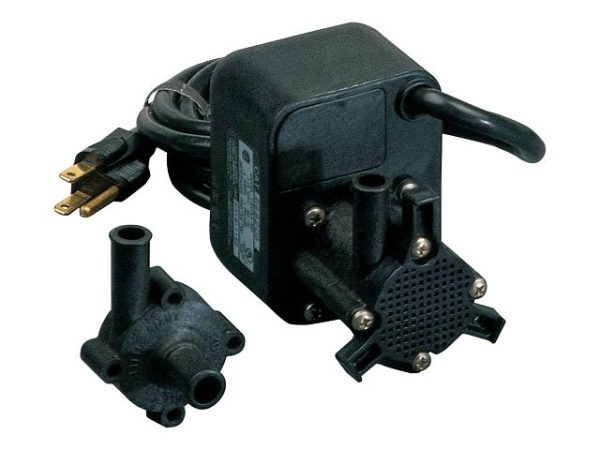

The Little Giant 1-EUAA-MD aquariam pump series features leakproof, seal-less magnetic drives recommended for inline or submersible use. It’s a dual-purpose, epoxy-encapsulated aquarium pump with 1/2″ outside diameter and intake for inline use with a screened inlet for submersible use. Its motor is not oil-filled to protect the aquatic fish, plants, and animals.
The 1-EUAA-MD is a highly efficient wet motor aquarium pump. Its volute and magnet housing is glass-filled polypropylene for excellent chemical resistance. The impeller is glass-filled polypropylene and ceramagnet “A” (barium ferrite). The shaft is ceramic and thrust washers are Rulon “J” (Teflon®) for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned, or serviced with no special tools. The spindle shaft is supported at both ends to prevent impeller damage during the start and stop of the pump.
| Capacity | 150 gph @ 1′ |
| Shut Off | 5′ (1.5 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ OD (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 0.3 A |
| Head | GPH (LPH) |
| 1′ | 150 (567.8) |
| 3′ | 105 (397.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 588205 | 1-EUAA-MD | 115 VAC | 2.5 gpm / 150 gph | 5 ft |
