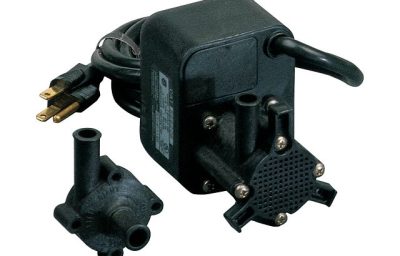

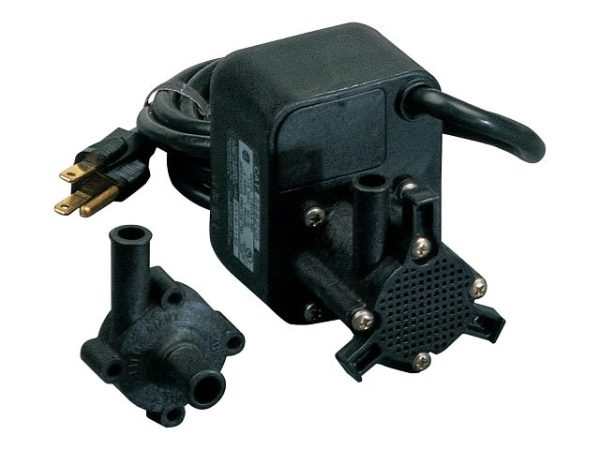

Little Giant’s 1-EUAA-MD Series is a magnetically-driven aquarium pump designed for saltwater or freshwater applications. It can pump up to 150 gph at 1′ head pressure and up to 105 gph at 3′ pressure. This chemical pump can handle fluids with a specific gravity of 1.1 and temperatures up to 120 °F (49 °C).
The 1-EUAA-MD features a thermally-protected, 1/200 horsepower motor with a 1/2″ OD inlet for in-line use and a screened inlet for submersible use. It also has a glass-filled polypropylene magnet housing and volute with a ceramic impeller shaft and Teflon thrust washers. The impedance-protected motor is epoxy-encapsulated inside a glass-filled polyester case.
| Capacity | 150 gph @ 1′ |
| Shut Off | 5′ (1.5 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ OD (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 0.3 A |
| Head | GPH (LPH) |
| 1′ | 150 (567.8) |
| 3′ | 105 (397.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 588205 | 1-EUAA-MD | 115 VAC | 2.5 gpm / 150 gph | 5 ft |
