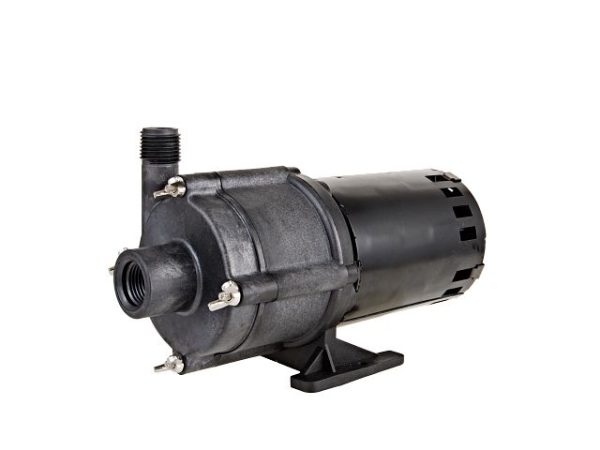

The 2-MD-HC is a non-submersible pump used to circulate highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions. Its volute, magnet housing, and impeller are glass-filled Ryton® for excellent chemical resistance. The HC series utilizes pure carbon bushing in the impeller to enable the pump to run dry for up to eight hours at a time.
Developed with a 1/3 horsepower thermally-protected, open fan-cooled motor and chemical-resistant components, the durable 2-MD-HC can sustain highly corrosive chemicals or solutions with fluid temperatures of up to 200ºF. This pump includes a 1/2″ FNPT and 1/2″ MNPT and pumps an impressive 510 gph @ 1′ head. It also has a shut-off of 14.6′ and PSI at 6.3.
| Capacity | 510 gph @ 1′ |
| Shut Off | 14.6′ (4.4 m) |
| Max. Liquid Temp. | 200 °F (93.3 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 60 Hz, 1.7 A 230 V, 50/60 Hz, 0.65/0.64 A |
| Head | GPH (LPH) |
| 1′ | 510 (1930.6) |
| 3′ | 465 (1760.2) |
| 6′ | 410 (1552) |
| 9′ | 330 (1249.2) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 580603 | 2-MD | 115 VAC | 8.5 gpm / 510 gph | 14.6 ft | |
| 580613 | 2-MD-HC | 230 VAC | 8.5 gpm / 510 gph | 47.9 ft |
