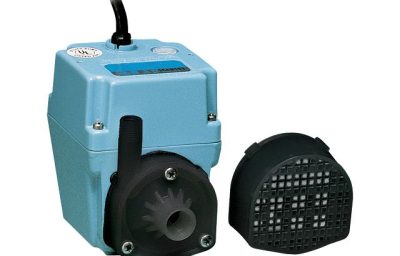

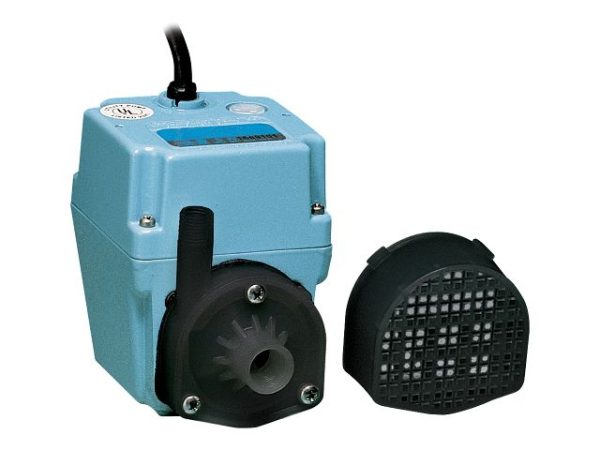

Little Giant’s 2E-38N Series is a dual-purpose, small oil-filled submersible pump used in commercial, industrial, or residential applications where liquid must be transferred or recirculated. These applications for this small oil-filled submersible pump include statuary fountains, water displays, air conditioners, and machine tool coolants.
The versatile 2E-38N Series small submersible pump can be used for a variety of purposes around the home, in workshops, and in commercial or industrial areas. The suction port of the pump is 3/8″ FNPT and the discharge is 1/4″ MNPT. Includes a snap-on pre-filter screen to prevent debris from damaging the impeller while extending the life of the small submersible pump.
| Capacity | 300 gph @ 1′ |
| Shut Off | 11.8′ (3.6 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.7 A 230 V, 50/60 Hz, 0.9/0.7 A |
| Head | GPH (LPH) |
| 1′ | 300 (1135.6) |
| 3′ | 225 (851.7) |
| 5′ | 205 (776) |
| 10′ | 70 (265) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 502203 | 2E-38N | 115 VAC | 5 gpm / 300 gph | 11.8 ft | 6 ft | |
| 502286 | 2E-38NT | 115 VAC | 5 gpm / 300 gph | 11.8 ft | 10 ft | |
| 502216 | 2E-38NY | 230 VAC | 5 gpm / 300 gph | 11.8 ft | 12 ft | |
| 502375 | 2E-38N-WG | 115 VAC | 5 gpm / 300 gph | 11.8 ft | 15 ft |
