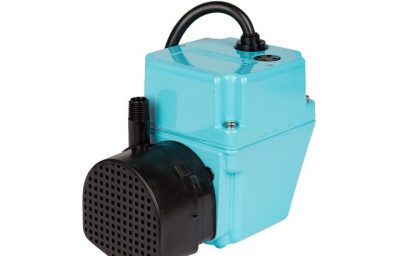

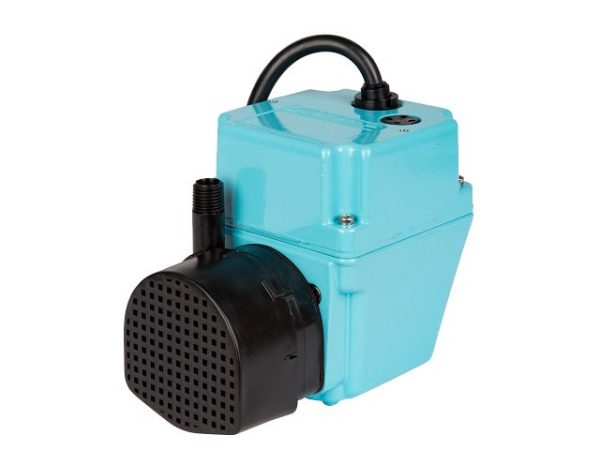

Small but mighty, the 2E-N Series is a small oil-filled submersible pump with a strong epoxy coated cast aluminum housing. This small oil-filled submersible pump is utilized for commercial, industrial, and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated.
This compact 300 GPH small submersible pump features a 1/4″ MNPT discharge, 11.8′ shut-off head capability, and screened inlet. Constructed of a durable, rigid epoxy-coated, die-cast aluminum housing and cover, the 1/40 horsepower oil-filled motor provides balanced heat distribution and continuous lubrication. The 1/4″ MNPT outlet accepts 1/2″ I.D. tubing. The polypropylene screen snaps off smoothly for ease of maintenance on this small submersible pump
| Capacity | 300 gph @ 1′ |
| Shut Off | 11.8′ (3.6 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.7 A 230 V, 50/60 Hz, 1.0/0.9 A |
| Head | GPH (LPH) |
| 1′ | 300 (1135.6) |
| 3′ | 225 (851.7) |
| 5′ | 205 (776) |
| 10′ | 70 (265) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 502103 | 2E-N | 115 VAC | 5 gpm / 300 gph | 11.8 ft | 6 ft |
