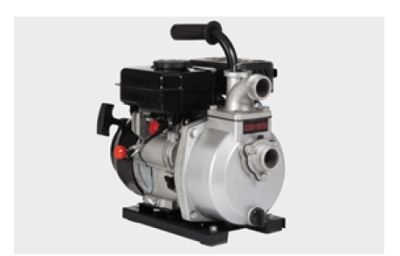

2RLAG-1L Aluminum Water Transfer Pump
Click to rate this post!
[Total: 1 Average: 5]
APPLICATIONS
Ideal for general purpose use where portability is required such as liquid transfer and
contractor de-watering applications.
FEATURES
- Durable cast iron semi-open style impeller
- Lightweight aluminum construction with base and handle for portability
- Self-priming to 25′ of suction lift
- Built-in check valve
- EPA certified
- Includes 1” adapter
- Repair kits available
Exploded Parts
REPLACEMENT PARTS and Repair Kit
| Item | Description | Contents |
|---|---|---|
| 617300 | Red lion 2RLAG-1L Minor Repair Kit | 11, 34, 35, 36, 37, 38 |
| 617310 | Red Lion 2RLAG-1L Major Repair Kit | 9, 11, 13, 14, 15, 34, 35, 36, 37, 38 |
| 617320 | Red Lion 2RLAG-1L Casing Kit | 10, 11, 12, 16, 17, 18, 26, 37 |
| 617330 | Red Lion 2RLAG-1L Accessory Kit | 32, 33 |
| 617340 | Red Lion 2RLAG-1L Suction and Discharge Flange Kit | 24, 25, 27, 28, 29, 30, 31, 32, 33 |
| 617350 | Red Lion 2RLAG-1L Handle/Base Assembly | 1, 2, 3, 4, 5, 7, 8, 39, 40, 41 |
INTRODUCTION
This is an engine-driven transfer pump for use in general de-watering applications and is suitable for pumping clear water. Do not use the pump in applications where sewage or any other debris (gravel, sand, floating debris, etc.) or corrosives are present.
This instruction sheet provides you with the information required to safely own and operate your product. Retain these instructions for future reference.The product you have purchased is of the highest quality workmanship and material, and has been engineered to give you long and reliable service. This product has been carefully tested, inspected, and packaged to ensure safe delivery and operation. Please examine your item(s) carefully to ensure that no damage occurred during shipment. If damage has occurred, please contact the place of purchase. They will assist you in replacement or repair, if required.
APPLICATION
Use this pump for water only, where the vertical suction head from the water level is 25 ft (8m) or less. Do not exceed the maximum suction head.
Head refers to the height of a column of water that can be delivered by the discharge of the pump (Figure 1). Suction head (or suction lift) is the vertical distance between the center of the pump and the surface of the liquid on the suction side of the pump. Discharge head is the vertical distance between the pump’s discharge port and the point of discharge. Total head is the sum of the suction head and the discharge head. The elevation above sea level and friction losses must be taken into consideration.
SPECIFICATIONS
| Model | 2RLAG-1L |
| Engine | Air Cooled, 4 Stroke, OHV, 79cc |
| Performance | 2.1 HP @ 3600 rpm |
| Fuel Type | Refer to engine manufacturer’s owner’s manual |
| Oil Type | Refer to engine manufacturer’s owner’s manual |
| Shut Off | 79 ft (24.1 m) |
| Suction head (max.) | 25 ft (7.6 m) |
| Intake Size | 1.5″ MNPT (3.8 cm) |
| Discharge Size | 1.5″ MNPT (3.8 cm) |
| Maximum Flow | 60 GPM (227 LPM) |
| Weight | 43 Lb (19.5 kg) |
| Height | 17.75″ (45.1 cm) |
| Width | 14″ (35.6 cm) |
| Length | 20.75″ (52.7 cm) |
Product Info
| Model | Item Number | UPC | cc | Intake | Discharge | Suction Lift | Max Head | Max Flow GPM | Fuel Tank (qt) | Engine |
|---|---|---|---|---|---|---|---|---|---|---|
| 2RLAG-1L | 617031 | 0 10121 14500 9 | 79cc | 1-1/2″ MNPT | 1-1/2″ MNPT | 25′ | 79′ | 60 gpm | 1.7 | 4 Stroke OHV (79cc) |
Carton Specifications
| Model | Length | Width | Height | Weight(lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty.per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| 2RLAG-1L | 16.5″ | 20.5″ | 18″ | 43 | 3.52 | 8 | 4 | 2 |
