The 3-MD-SC Series is engineered for semi-corrosive chemicals and solutions featuring rotatable pump heads for easy maintenance. This pump is equipped with a thermally protected 1/12 hp open fan-cooled motor with ball bearings, a 6′ power cord, and a 3-prong molded plug.

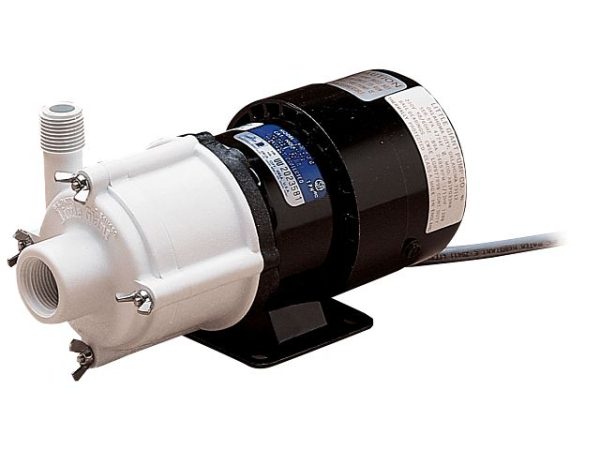

The Little Giant 3-MD-SC Chemical Pump is designed to handle semi-corrosive chemicals and features leakproof, seal-less magnetic drives, and is designed for in-line, non-submersible use. Volute, magnet housing, and impeller are made of glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5 percent pure alumina for excellent wear resistance and trouble-free service. The washers do not revolve to prevent wear on the shaft.
| Capacity | 750 gph @ 1′ |
| Shut Off | 21.9′ (6.6 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 60 Hz, 2.4 A 230 V, 60 Hz, 1.7 A |
| Head | GPH (LPH) |
| 1′ | 750 (2839.1) |
| 3′ | 710 (2687.6) |
| 6′ | 665 (2517.3) |
| 9′ | 600 (2271.2) |
| 15′ | 425 (1608.8) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 581503 | 3-MD-SC | 115 VAC | 12.5 gpm / 750 gph | 21.9 ft | |
| 581513 | 3-MD-SC | 230 VAC | 12.5 gpm / 750 gph | 21.9 ft | |
| 581576 |
