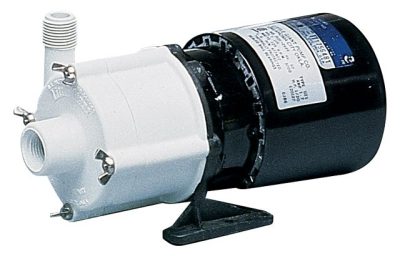

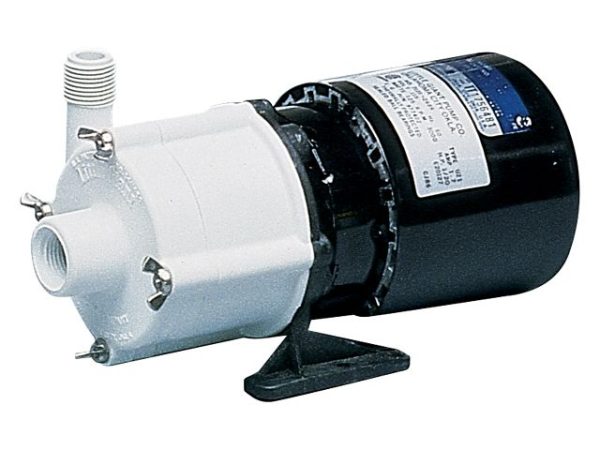

Handling abrasive particulates and corrosive fluids in chemical processing can bring on numerous challenges. Little Giant’s 3-MD Series is a proven answer to problems involving the circulation of mildly corrosive liquids and solutions. The 3-MD is constructed with durable materials, designed to deliver consistent performance to challenging industrial environments.
Driven by a thermally protected, open, and fan-cooled motor, the 3-MD Series is constructed of a durable thermoplastic magnet housing and volute. The impeller is constructed of a glass-filled polypropylene and ceramagnet “A” (barium ferrite) for improved stability and rigidity. The 3-MD can tolerate high temperatures up to 150 °F (66 °C).
| Capacity | 9.8 gpm @ 1′ |
| Shut Off | 16.1′ (4.9 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 1.4 A |
| Head | GPM (LPM) |
| 1′ | 9.8 (37.1) |
| 3′ | 9.1 (34.4) |
| 6′ | 8.2 (31) |
| 9′ | 6.5 (24.6) |
| 15′ | 2.5 (9.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 581002 | 3-MD | 115 VAC | 9.8 gpm / 588 gph | 16.1 ft |
