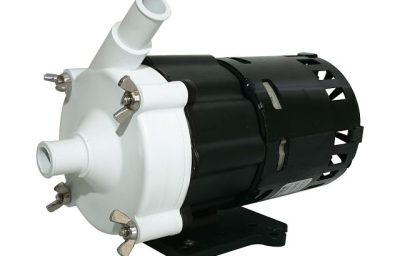

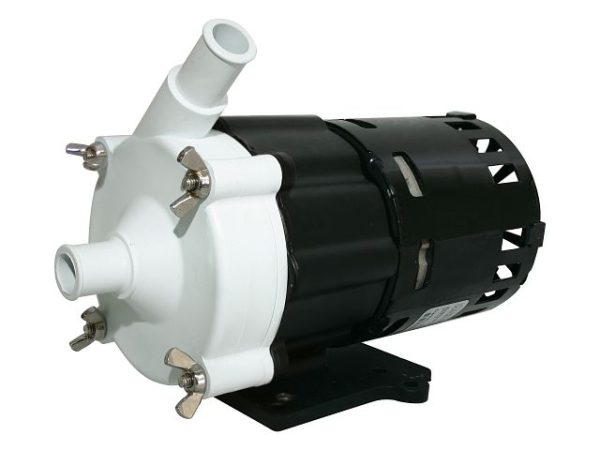

Ideal in the circulation of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions, the 3-MDX Series boasts a 1/25 hp open fan-cooled motor with enclosure. The design isolates the pump mechanism from the motor to boost resistance.
The 3-MDX Series is lightweight and economical in the circulation of mildly corrosive liquids and solutions. The encapsulated motor design provides a barrier of protection for added endurance. Volute and magnet housing is glass-filled polypropylene for excellent chemical resistance.
| Capacity | 456 gph @ 1′ |
| Shut Off | 19′ (5.8 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 5/8″ OD (15.9 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 1.65 A |
| Head | GPH (LPH) |
| 1′ | 456 (1726.1) |
| 3′ | 420 (1589.9) |
| 6′ | 408 (1544.4) |
| 9′ | 360 (1362.7) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 581031 | 3-MDX | 115 VAC | 7.6 gpm / 456 gph | 19 ft |
