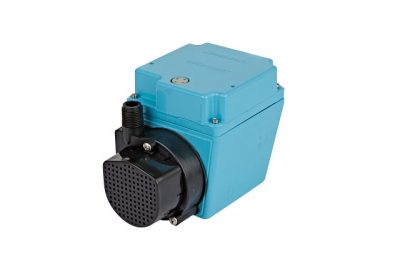

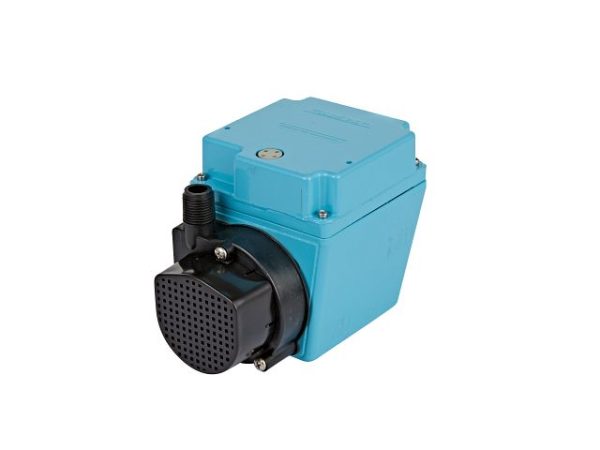

3E-34N Series Oil-Filled Submersible Pump
Little Giant’s 3E-34N small oil-filled submersible pump is versatile and used for many purposes around the home, in workshops, or commercial and industrial fields. The 3E-34N can be used in-line or as a submersible pump. Applications for this small oil-filled submersible pump include statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated.
Features & Benefits
- 1/15 hp, oil-filled direct-drive motor
- Epoxy coated cast aluminum housing and cover
- Nylon volute
- Stainless steel backplate
- Fluoroelastomer (FKM) shaft seal
- Polypropylene screen
Overview
Little Giant’s 3E-34N small submersible pump comes with a 1/15 horsepower oil-filled motor for thermal protection and continuous lubrication for longevity. It includes a 1/2″ discharge and can handle liquid temperatures up to 120 °F (49 °C). The 3E-34N small submersible pump has a 20.3′ maximum lift and a polypropylene screen protects it from any debris from entering the motor.
Specifications
| Capacity | 670 gph @ 1′ |
| Shut Off | 20.3′ (6.2 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 2.5 A |
Performance
| Head | GPH (LPH) |
| 1′ | 670 (2536.2) |
| 3′ | 650 (2460.5) |
| 5′ | 575 (2176.6) |
| 10′ | 460 (1741.3) |
Order Information
3E-34N Series Small Submersible Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 503603 | 3E-34N | 115 VAC | 11 gpm / 660 gph | 20.3 ft | 10 ft |
