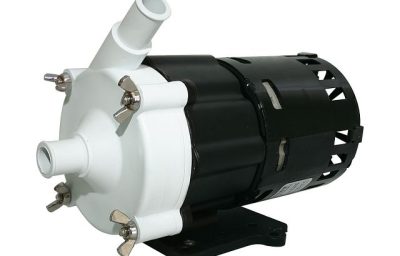

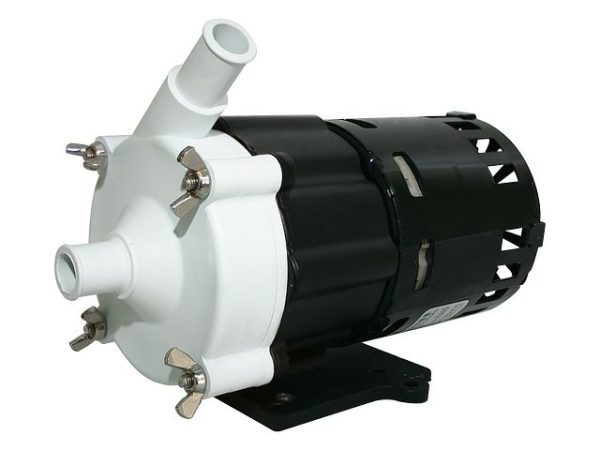

The 3X-MDX Series is a non-submersible magnetic drive pump that handles the circulation of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions. Its thermally protected, open, fan-cooled motor aids in providing an added layer of defense against chemical and environmental elements.
This magnetic drive pump features a flow rate of 348 GPH at 1′ and is powered by a 1/50 horsepower open fan-cooled (FC) motor with sleeve bearings. A polypropylene housing encloses the motor to protect it from any chemical it encounters. It is designed to handle viscosity to 100 SSU (at 1.1 specific gravity or less).
| Capacity | 348 gph @ 1′ |
| Shut Off | 7′ (2.1 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 5/8″ OD (15.9 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 0.94 A |
| Head | GPH (LPH) |
| 1′ | 348 (1317.3) |
| 3′ | 300 (1135.6) |
| 6′ | 198 (749.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 581030 | 3X-MDX | 115 VAC | 5.75 gpm / 345 gph | 7 ft |
