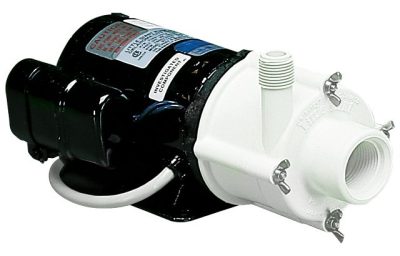

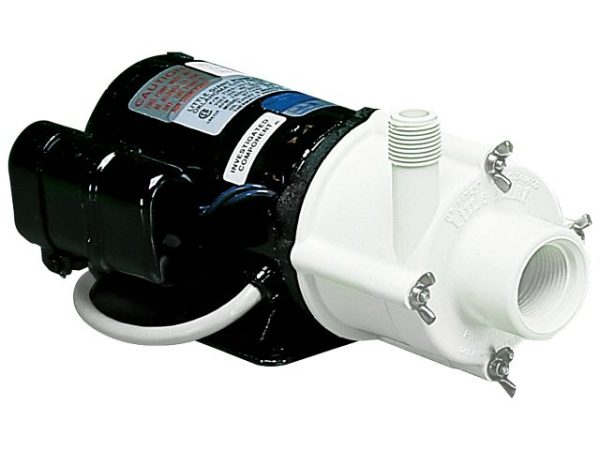

Little Giant’s 4-MD-SC Series is ideal for handling semi-corrosive solutions such as alkalis, acids, solvents, and more. Constructed with materials that are chemical resistant, the 4-MD-SC is a constant performing magnetic drive pump.
These magnetically driven pumps are designed for use with semi-corrosive chemicals and solutions, and feature polypropylene, ceramic and Buna-N parts. Built with a thermally protected open fan-cooled motor with sleeve bearings, 6′ power cord, and 3-prong molded plug.
| Capacity | 850 gph @ 1′ |
| Shut Off | 24′ (7.3 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 60 Hz, 1.7 A |
| Head | GPH (LPH) |
| 1′ | 850 (3217.6) |
| 3′ | 810 (3066.2) |
| 6′ | 765 (2895.8) |
| 9′ | 710 (2687.6) |
| 15′ | 550 (2082) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 582503 | 4-MD-SC | 115 VAC | 14 gpm / 840 gph | 24.3 ft |
