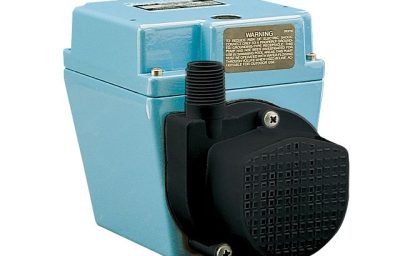

This oil -filled small oil-filled submersible pump is designed for commercial, industrial, and home applications, including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid needs transferred or re-circulated. Using this small oil-filled submersible pump in swimming pools and aquariums is not recommended.
This compact small submersible pump is constructed of an epoxy-coated die-cast aluminum housing and is powered by a 1/12 horsepower oil-filled, heavy-duty motor. The capabilities of this small submersible pump include a 23/1′ maximum lift and features a 1/2″ MNPT discharge, 23.1′ shut-off head capability, and screened inlet.
| Capacity | 710 gph @ 1′ |
| Shut Off | 23.1′ (7 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 3.5 A |
| Head | GPH (LPH) |
| 1′ | 710 (2687.6) |
| 3′ | 690 (2611.9) |
| 5′ | 670 (2536.2) |
| 10′ | 580 (2195.5) |
| 20′ | 150 (567.8) |

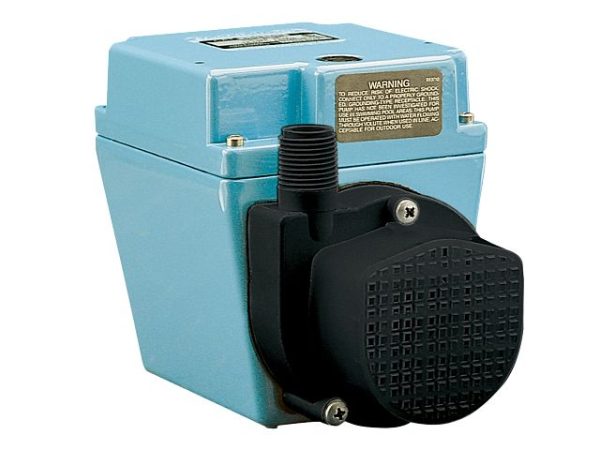

| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 504103 | 4E-34N | 115 VAC | 13.5 gpm / 810 gph | 24.5 ft | 6 ft | |
| 504186 | 4E-34NT | 115 VAC | 13.5 gpm / 810 gph | 24.5 ft | 10 ft |
