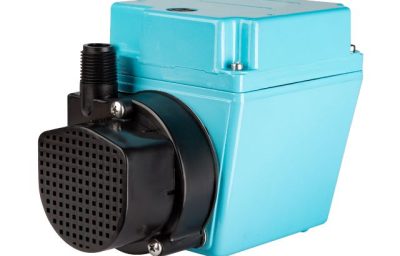

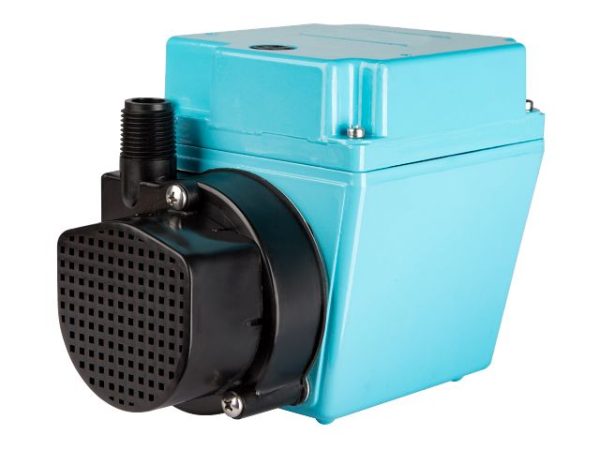

The 4E-34NR is an small oil-filled submersible pump with epoxy coated cast aluminum housing. Commercial, industrial, and home applications include statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where a small oil-filled submersible pump transfers or recirculated liquid.
Made for submersible use only, this compact 810 GPH small submersible pump features a 1/2″ MNPT discharge and screened inlet. It has a 24.5′ maximum lift capacity. This small submersible pump is designed to handle intermittent temperatures of up to 120 °F (49 °C).
| Capacity | 810 gph @ 1′ |
| Shut Off | 24.5′ (7.5 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 3.5 A 230 V, 50/60 Hz, 1.8/1.6 A |
| Head | GPH (LPH) |
| 1′ | 810 (3066.2) |
| 3′ | 790 (2990.5) |
| 5′ | 745 (2820.1) |
| 10′ | 613 (2320.5) |
| 20′ | 173 (654.9) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 504203 | 4E-34NR | 115 VAC | 13.5 gpm / 810 gph | 24.5 ft | 6 ft | |
| 504216 | 4E-34NRY | 230 VAC | 13.5 gpm / 810 gph | 24.5 ft | 12 ft |
