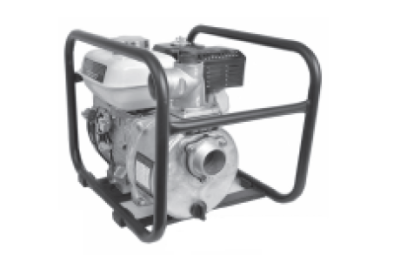

4RLAG-2H Aluminum Water Transfer Pump (Honda Engine) (617053)

APPLICATIONS
Ideal for general purpose use in high volume liquid transfer and contractor de-watering applications.

FEATURES

  • Powered by commercial grade Honda GX120 engine
  • Durable cast iron semi-open style impeller
  • Lightweight aluminum outer casing: includes heavy-duty roll frame
  • Self-priming to 25′ of suction lift
  • Built-in check valve
  • EPA certified
  • Repair kits available
Click to rate this post!
[Total: 3 Average: 4.3]

Exploded Parts

exploded-parts

REPLACEMENT PARTS

exploded-parts

If you are looking for a new pump. 4RLAG-2H (617056) is replaced with 6RLAG-2LST.Replacement Parts for 4RLAG-2H (617056) are still available.

Red Lion, 6RLAG-2LST Aluminum Engine Driven Semi-trash Pump W/LCT Engine 208 cc, 2 Inch MNPT w/Roll Frame

Model # 6RLAG-2LST Item # 617034 Red Lion’s engine-driven Semi-Trash pump handles various liquid slurries including sand, pebbles, and suspended solids less than 1/2″ in diameter

4RLAG-2H Replacement Parts (617053) Models Before 09.12.2019 use this break down.Replacement parts are available for this 4RLAG-2H (617053).Models after 9.12.2019 please see break down (617056) Note: To find out what model pump you have please look at Pump TAG. Pump Tag should say 617053 or 617056 .This will help determine which model pump you have. To decide on what parts you will need.

exploded-parts
ITEM # Description KIT GROUP ID* PART #

1

4RLAG-2H Adapter

A

617103

2

4RLAG-2H O-ring, 195mm NBR

A

617103

B

617100

3

4RLAG-2H Mechanical seal

A

617103

B

617100

4

4RLAG-2H Impeller

A

617103

B

617100

5

4RLAG-2H Volute casing

A

617103

6

4RLAG-2H Volute packing

A

617103

B

617100

7

4RLAG-2H Pump casing

A

617103

8

4RLAG-2H Gasket

A

617103

C

617101

9

4RLAG-2H Discharge flange

A

617103

C

617101

10

4RLAG-2H Flapper

A

617103

D

617102

11

4RLAG-2H Suction flange

A

617103

D

617102

12

4RLAG-2H O-ring, 24mm NBR

A

617103

C

617101

D

617102

13

4RLAG-2H Cap plug

A

617103

C

617101

D

617102

14

4RLAG-2H Roll frame

E

617104

Items with like identifiers are sold/packaged together As a convenience, all repair kits contain the fasteners needed for the reassembly of their components.

Product Info

Model Item Number UPC cc Intake Discharge Suction Lift Max Head Max Flow GPM Fuel Tank (qt) Engine

4RLAG-2H

617053

0 10121 13751 6

118cc

2″ MNPT

2″ MNPT

25′

59′

143 gpm

2.1

Honda GX120 (118cc)

Carton Specifications Model

Model Length Width Height Weight(lbs) Carton Cubes (cu ft) Pallet Quantity Qty.per Layer Layers per Pallet

4RLAG-2H

15.25″

19.5″

15.25″

52

2.62

18

6

3
