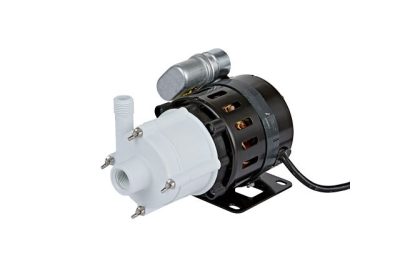

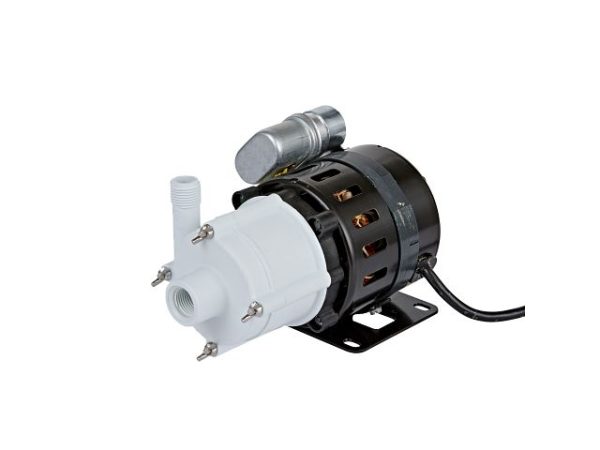

The compact 5-MD Series non-submersible pump delivers continuous duty pumping of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions. This pump is constructed of high-quality materials to withstand fluid temperatures up to 150 °F (66 °C), these materials are also suitable for ambient air temperatures to 77 °F (25 °C).
Capable of reaching 15.1 gallons per minute at 1′ head, the 5-MD Series has a maximum PSI of 15. The volute, magnet housing, and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear resistance and trouble-free service. Pumping heads are easily rotated, cleaned, or serviced with no special tools required. The spindle shaft is supported at both ends to prevent impeller damage during the start and stop of the pump.
| Capacity | 905 gph @ 1′ |
| Shut Off | 34.6′ (10.5 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 2.1 A 230 V, 50/60 Hz, 1.0/1.1 A |
| Head | GPH (LPH) |
| 1′ | 905 (3425.8) |
| 3′ | 875 (3312.2) |
| 6′ | 800 (3028.3) |
| 9′ | 750 (2839.1) |
| 15′ | 635 (2403.7) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 583002 | 5-MD | 115 VAC | 15.1 gpm / 906 gph | 34.6 ft |
