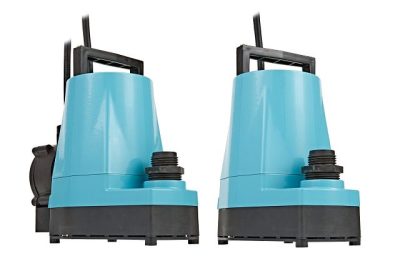

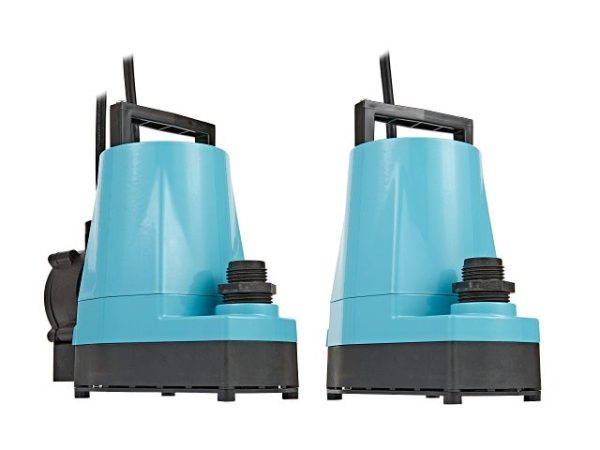

Weighing just under 8 lbs and producing 1500 gph, the 5-Series utility pump is truly a Little Giant! The compact and robust 5-Series utility pump is rated for continuous duty – allowing for a wide range of applications and uses. Featuring six models, these fully submersible pumps are ideal for light commercial and multipurpose residential applications where water removal, transfer, or circulation is necessary.
Continuous-duty rated for homeowner, DIYer, and contractor, Little Giant’s 5-Series utility pump is the embodiment of endurance and performance from a utility pump. Multiple switch options for automatic operation give application flexibility. Available in different cord lengths to meet your specific application needs.
| Capacity | 1500 gph @ 1′ |
| Shut Off | 26.3′ (8 m) |
| Max. Liquid Temp. | Fully certified to continuous duty liquid temperature rating of up to 96°F (30°C) |
| Discharge | 1″ FNPT (25.4 mm) – includes garden hose adapter |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 2.0 A, 220 W 230 V, 60 Hz, 1.0 A, 220 W |
| Operation | Manual or Automatic |
| Head | GPH (LPH) |
| 1′ | 1500 (5678) |
| 3′ | 1464 (5542) |
| 5′ | 1395 (5281) |
| 10′ | 1191 (4508) |
| 20′ | 528 (1999) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 505715 | 5-ASP | 115 VAC | Automatic | 10 ft | 1 “ |
| 505723 | Next Gen 5-MSP 10-Ft Cord | 115 VAC | Manual | 10 ft | 1 “ |
| 505712 | Next Gen 5-MSP 25-Ft Cord | 115 VAC | Manual | 25 ft | 1 “ |
| 505714 | Next Gen 5-MSP 230 Volt 12-Ft Cord | 230 VAC | Manual | 12 ft | 1 “ |
| 505721 | 5-MSP | 127 VAC | Manual | 18 ft | 1 “ |
| 505717 | Next Gen 5-ASP-LL 18-Ft Cord | 115 VAC | Automatic | 18 ft | 1 “ |
