CH&E Generac Magnum MCP5437 Diaphragm Trash Pump & Repair Parts

The CH&E Generac Magnum MCP5437 diaphragm trash pump is a heavy-duty self-priming diaphragm water pump built for contractors, industrial operators, and municipal teams who need steady and dependable fluid transfer across demanding job site conditions. This page covers the complete product overview, specifications, key features, applications, and repair parts information for the MCP5437 diaphragm water pump.

Ken’s Distributing Company is a specialist in CH&E and Generac Magnum diaphragm pump repair parts for the full MCP series range. If you need help identifying the correct repair parts for your MCP5437 or confirming compatibility with your specific pump configuration, the Kendisco team is ready to assist. Contact us at 303-699-7845 or submit a quote request online.

CH&E Generac Magnum MCP5437 Diaphragm Trash Pump: Product Overview

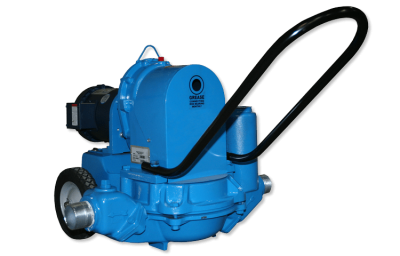

The CH&E Generac Magnum MCP5437 is a 3 inch diaphragm prime trash pump powered by a 1.5 HP TEFC three-phase electric motor, making it the electric motor variant in the MCP5437 and MCP5438 model family. Where the MCP5438 uses a Honda GX160 gas engine, the MCP5437 uses a totally enclosed fan-cooled (TEFC) three-phase electric motor, making it the preferred choice for indoor facilities, enclosed job site environments, or any application where electric power is available and exhaust emissions from a gas engine are not acceptable.

The MCP5437 pumps up to 50 gallons per minute with a maximum head of 50 feet through a 3 inch intake and discharge port. Like all CH&E diaphragm pumps, it operates without an impeller shaft or mechanical seal, which means sand, silt, and abrasive particles in the water cannot damage the components that fail first in centrifugal pump designs. The pump runs dry indefinitely without internal damage and automatically re-primes when water returns to the suction inlet.

CH&E Generac Magnum MCP5437 Diaphragm Trash Pump: Key Specifications

CH&E Generac Magnum MCP5437 Diaphragm Trash Pump: Key Features

• 1.5 HP TEFC Three-Phase Electric Motor: Totally enclosed fan-cooled motor provides reliable, clean operation in indoor and enclosed environments where gas engine exhaust is not acceptable. Three-phase power delivery ensures smooth, consistent motor performance under continuous load
• Heavy-Duty Cast Aluminum Housing: Built for lifetime durability in demanding job site and facility conditions while keeping the pump compact and manageable for installation and repositioning
• No Impeller Shaft or Seal: Eliminates the primary failure point when pumping sand, silt, and abrasive water. No mechanical seal means no seal damage from dry running or from abrasive particles passing through the fluid stream
• Automatic Self-Priming: Diaphragm prime system evacuates air from the pump casing and suction line automatically before each startup. No manual priming or pre-filling required, reducing setup time and operator intervention
• Runs Dry Indefinitely: Continues operating without internal damage after the water source is depleted, then automatically re-primes and resumes pumping when water returns to the suction inlet
• Auto-Priming Intermittent Pumping: Designed for applications with intermittent flow where the pump must restart automatically without operator input, including seepage dewatering, foundation drainage, and facility sump applications
• Self-Cleaning Water Flow: Internal flow path design reduces debris buildup and clogging during extended pumping in muddy, sandy, and debris-laden water
• Low Maintenance Design: Fewer critical wear components than centrifugal pump designs. Electric motor eliminates engine oil changes, air filter service, spark plug replacement, and fuel system maintenance
• Skid Mount and Wheel Mount Options: Skid mount (S) for permanent or semi-permanent facility installations, wheel mount (W) for portable job site use

MCP5437 Electric Motor vs. MCP5438 Gas Engine: Choosing the Right Power Source

The MCP5437 and MCP5438 share the same CH&E 5400 Series aluminum diaphragm pump platform and deliver identical flow rate and head performance. The key difference is the power source, which determines where and how each model can be used.

MCP5437 vs. MCP5537: 2 Inch Electric vs. 3 Inch Gas Diaphragm Pumps

The MCP5437 and MCP5537 are frequently compared when selecting between electric motor and gas engine diaphragm pump options in the CH&E Generac Magnum range. The MCP5437 uses a TEFC electric motor while the MCP5537 uses a Honda GX120 gas engine. Both deliver 50 GPM at 50 feet maximum head but differ in port size, power source, and best-fit applications.

Repair Parts for the CH&E Generac Magnum MCP5437 Diaphragm Trash Pump

Ken’s Distributing Company stocks genuine repair parts for the CH&E Generac Magnum MCP5437 diaphragm trash pump. The MCP5437 is built on the CH&E 5400 Series aluminum diaphragm pump platform and shares most core pump components with other models in the MCP and CH&E 5400 Series range. Motor-specific components are unique to the electric motor configuration. Always use your unit serial number when ordering to confirm the correct part numbers for your specific MCP5437 build.

Commonly replaced repair parts for the MCP5437 diaphragm trash pump include:

• Diaphragm: Primary fluid-end wear component. Available in Neoprene, Buna-N, TPE, Rubber, and Viton. Select the material that best matches your fluid type and operating environment
• Flap Valve Assemblies: Two required per pump. Available in Neoprene, Buna-N, Neoprene with cloth insert, and Viton. Cloth insert Neoprene extends valve life in high-cycle and continuous operation scenarios
• Diaphragm Rebuild Kit: Complete fluid-end kit including diaphragm, flapper assemblies, and all hardware needed for a full rebuild in one order
• Connecting Rod and Bearing: Drivetrain components serviced during major pump rebuilds. Grease the connecting rod bearing at regular intervals through the grease fitting
• Lip Seals and Case Gasket: Replace at each major rebuild to prevent fluid ingress into the drivetrain housing
• Ball Bearings and Needle Bearing: Inspect and replace as part of complete drivetrain overhauls
• Crank Arm and Gear Set: Long-life drivetrain components replaced during full pump overhauls
• Suction Strainer: Inspect and clean before each use. Replace if cracked, blocked, or structurally compromised
• Electric Motor Components: The 1.5 HP TEFC three-phase motor and motor adapter components are specific to the MCP5437 electric configuration. Contact Kendisco to confirm motor-specific part availability for your unit

Diaphragm Material Selection for the MCP5437

Selecting the correct diaphragm material for the CH&E Generac Magnum MCP5437 diaphragm trash pump is essential for maximizing service life and maintaining reliable pump performance. The right material choice depends on the fluid being pumped and the conditions in which the MCP5437 operates.

Flap Valve Selection for the MCP5437

Each CH&E Generac Magnum MCP5437 diaphragm trash pump requires two flap valve assemblies. The correct valve material should reflect the fluid type and the operating cycle intensity specific to your application.

• Neoprene: Best for general dewatering, facility drainage, and moderate chemical exposure. The standard choice for most MCP5437 indoor and outdoor applications
• Buna-N: Recommended for petroleum-based fluid transfer and light chemical contact in industrial facility applications
• Neoprene with Cloth Insert: Recommended for high-cycle continuous operation, abrasive slurry pumping, and any application where extended valve service life between replacements is a priority
• Viton: For aggressive chemical environments, solvent transfer, and high-temperature industrial fluid applications

Maintenance Guidance for the CH&E Generac Magnum MCP5437 Diaphragm Trash Pump

The electric motor configuration of the MCP5437 eliminates engine-related maintenance tasks such as oil changes, air filter service, spark plug replacement, and fuel system management. This significantly reduces the total maintenance burden compared to gas engine diaphragm pump models. However, regular inspection and replacement of fluid-end wear components remains essential for reliable performance.

• Diaphragm inspection: Inspect every 250 operating hours. Replace at the first sign of cracking, stiffness, deformation, or reduced pump output. In abrasive water or high-cycle continuous operation, inspect more frequently
• Flap valve inspection: Check valve condition and seating quality at each diaphragm inspection. Replace valves showing wear, tearing, or failure to seat correctly on the valve face
• Suction strainer: Inspect and clean before each use. Replace immediately if cracked, blocked, or deformed
• Connecting rod bearing: Grease through the grease fitting at regular service intervals to prevent dry bearing wear
• Case gasket and lip seals: Replace at each major rebuild to maintain a sealed and leak-free drivetrain housing
• Electric motor: Inspect motor connections and terminal block for corrosion or loose connections periodically. Verify motor cooling vents are clear of debris to maintain TEFC motor airflow. Check motor insulation resistance annually in demanding environments

How Often Should I Rebuild the MCP5437 Diaphragm Trash Pump?

Under normal operating conditions, plan for a full fluid-end rebuild every 500 to 750 operating hours, or at the first sign of reduced pump output, weakened auto-priming performance, or visible diaphragm wear. For MCP5437 pumps running in continuous high-cycle facility applications, monitor diaphragm condition more frequently and replace at the first signs of reduced flexibility or surface cracking. Replacing all fluid-end wear components together during each rebuild reduces the risk of follow-on component failures in the weeks after service.

Common Service Questions for the CH&E Generac Magnum MCP5437 Diaphragm Trash Pump

What does TEFC mean on the MCP5437 electric motor?

TEFC stands for Totally Enclosed Fan-Cooled. The motor housing is sealed to prevent moisture, dust, and debris from entering the motor windings, making it suitable for dirty and wet job site and facility environments. The external fan draws air across the motor housing to maintain operating temperature. TEFC motors are a standard choice for industrial pump applications where environmental contamination of motor windings would cause premature failure in an open motor design.

Does the MCP5437 require three-phase power? Can it run on single-phase?

The MCP5437 as specified uses a 1.5 HP TEFC three-phase electric motor, which requires a three-phase electrical supply to operate correctly. It cannot be run on a single-phase supply without a phase converter or motor replacement. If your facility or job site only has single-phase power available, contact the Kendisco team at 303-699-7845 to discuss alternative motor configuration options for your MCP5437 application.

Can the MCP5437 be used indoors?

Yes. The electric motor configuration of the MCP5437 produces no exhaust emissions, making it suitable for indoor use in facilities, warehouses, pump stations, and enclosed job site areas where gas engine exhaust would be a health and safety concern. Ensure adequate ventilation is maintained in the work area and that the electrical installation meets all applicable codes and standards for the environment in which the pump is installed.

What is the flow rate of the MCP5437 compared to the 3 inch gas engine models?

The MCP5437 electric motor model delivers 50 GPM (189 Lpm) at a maximum head of 50 feet. The MCP5537 and MCP5538 gas engine models with 3 inch ports deliver 85 GPM (322 Lpm) at 50 feet maximum head. The lower flow rate of the MCP5437 reflects the output capacity of the 1.5 HP TEFC motor relative to the Honda GX120 and GX160 gas engines. For applications requiring higher flow rates from an electric motor configuration, contact the Kendisco team to discuss available options.

Where can I order MCP5437 diaphragm pump repair parts?

Ken’s Distributing Company is a specialist in CH&E Generac Magnum diaphragm pump repair parts for the complete MCP series range, including both electric motor and gas engine configurations. Kendisco stocks diaphragm kits, complete rebuild kits, flap valve assemblies, seals, bearings, and all platform components for the MCP5437. Contact the Kendisco team at 303-699-7845 with your unit serial number for fast, accurate parts identification and availability confirmation. You can also reach out online to submit a quote request.

Industries and Applications for the CH&E Generac Magnum MCP5437 Diaphragm Trash Pump

The CH&E Generac Magnum MCP5437 diaphragm trash pump is particularly well suited to facilities and applications where electric power is available and the emission-free, quieter operation of a TEFC electric motor is an advantage over gas engine alternatives.

• Industrial Facility Drainage: Removes process water, wash-down water, and facility floor drainage in manufacturing plants, warehouses, and industrial facilities with three-phase electrical supply
• Municipal Pump Stations: Supports bypass pumping, sump management, and wet well dewatering in municipal water and wastewater infrastructure where electric motor operation is standard practice
• Construction and Foundation Dewatering: Manages seepage and groundwater removal in enclosed or partially enclosed construction environments such as underground structures, tunnels, and basement excavations where gas engine exhaust is not permitted
• Pond and Ditch Dewatering: Pumps shallow and muddy water from ponds, drainage ditches, and low-lying areas where a three-phase electrical supply is accessible
• Agriculture and Irrigation: Transfers water from ponds and open sources in agricultural facilities and pump houses equipped with three-phase power
• Marine and Port Facilities: Removes bilge water, dock drainage, and facility water in marine environments where electric motor operation is preferred or required
• Mining and Quarrying Facilities: Manages drainage in mine facilities and processing plants equipped with three-phase electrical infrastructure

Order CH&E Generac Magnum MCP5437 Diaphragm Trash Pump Parts from Kendisco

Ken’s Distributing Company is a trusted repair parts specialist for the CH&E Generac Magnum MCP5437 diaphragm trash pump and the complete MCP and CH&E diaphragm pump series. Whether you need a diaphragm kit, complete rebuild kit, flap valve assemblies, seals, bearings, or motor-related components for your MCP5437, the Kendisco team has the inventory and technical knowledge to support your service needs.

Call Ken’s Distributing Company at 303-699-7845, submit a quote request online, or contact us by email with your unit serial number for fast and accurate parts identification. Getting your CH&E Generac Magnum MCP5437 diaphragm trash pump back in service starts here.
