CH&E Generac Magnum MCP5538 Diaphragm Trash Pump & Repair Parts

The CH&E Generac Magnum MCP5538 diaphragm trash pump is a professional-grade self-priming diaphragm water pump built for contractors, municipal teams, and industrial operators who need dependable fluid transfer in demanding job site conditions. This page covers the complete product overview, specifications, applications, features, and repair parts information for the MCP5538 diaphragm water pump.

Ken’s Distributing Company is a specialist in CH&E and Generac Magnum diaphragm pump repair parts for the full MCP series range. If you need help identifying the correct repair parts for your MCP5538 or confirming compatibility with your specific pump configuration, the Kendisco team is ready to assist. Contact us at 303-699-7845 or submit a quote request online.

CH&E Generac Magnum MCP5538 Diaphragm Trash Pump: Product Overview

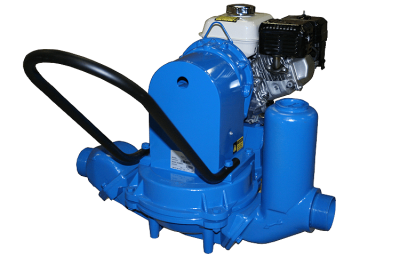

The CH&E Generac Magnum MCP5538 is a 3 inch diaphragm prime trash pump designed specifically for shallow and muddy dewatering applications where self-priming performance, dry-run capability, and sand and silt tolerance are required. Powered by a Honda GX160 engine delivering 5.5 maximum horsepower at 3600 RPM, the MCP5538 pumps up to 85 gallons per minute with a maximum head of 50 feet, making it a practical and reliable choice for ponds, trenches, ditches, foundations, and general construction site dewatering.

Unlike centrifugal trash pumps, the MCP5538 has no impeller shaft or mechanical seal that can be damaged by sand or silt. The diaphragm design handles abrasive and sediment-laden water without the accelerated wear that would occur in a centrifugal pump under the same conditions. The pump runs dry indefinitely after the water source is depleted and automatically re-primes and resumes pumping when water pools up again at the suction inlet.

CH&E Generac Magnum MCP5538 Diaphragm Trash Pump: Key Specifications

CH&E Generac Magnum MCP5538 Diaphragm Trash Pump: Key Features

• Honda GX160 Engine: Reliable, fuel-efficient engine with proven performance in demanding field applications. Maximum 5.5 HP at 3600 RPM delivers consistent pump output across a full range of dewatering conditions
• Heavy-Duty Cast Aluminum Housing: Built for lifetime durability in tough job site environments while keeping the pump lightweight and portable compared to cast iron alternatives
• No Impeller Shaft or Seal: Eliminates the primary failure point when pumping sand, silt, and abrasive particles. No mechanical seal means no seal damage from dry running or abrasive water conditions
• Automatic Self-Priming: Diaphragm prime system clears air from the pump casing and suction line automatically before each startup. No manual priming or pre-filling required
• Runs Dry Indefinitely: Continues operating without internal damage after the water source is depleted, then re-primes and resumes pumping automatically when water returns
• Self-Cleaning Water Flow: Internal flow path design reduces debris buildup and minimizes clogging during extended pumping operations in muddy and debris-laden water
• Low Maintenance Design: Simple diaphragm mechanism with fewer wear components than centrifugal pump designs, reducing the frequency and cost of routine service
• Auto-Priming Intermittent Pumping: Ideal for seepage dewatering, foundation drainage, and any application where flow is intermittent and the pump must restart automatically without operator intervention
• Skid Mount and Wheel Mount Options: Choose skid mount (S) for stationary applications or wheel mount (W) for portable, easily repositioned job site use

MCP5538 vs. MCP5537: Understanding the Difference

The MCP5538 and MCP5537 are both 3 inch diaphragm pumps on the CH&E 5500 Series aluminum platform and are frequently compared when selecting the right pump for a job. While both models share the same core diaphragm pump design, port size, and platform components, they differ in engine configuration, performance output, and specific application fit.

Contact the Kendisco team at 303-699-7845 to confirm the exact engine specification, performance rating, and repair parts list for the MCP5537 based on your unit serial number, and to confirm which components are shared with the MCP5538.

MCP5538 vs. Centrifugal Trash Pumps: Which Is Right for Your Job?

Repair Parts for the CH&E Generac Magnum MCP5538 Diaphragm Trash Pump

Ken’s Distributing Company stocks genuine repair parts for the CH&E Generac Magnum MCP5538 diaphragm trash pump. The MCP5538 is built on the CH&E 5500 Series aluminum diaphragm pump platform and shares core components with other models in the MCP and CH&E 5500 Series range. Always use your unit serial number when ordering to confirm the correct part numbers for your specific MCP5538 build.

Commonly replaced repair parts for the MCP5538 diaphragm trash pump include:

• Diaphragm: Primary fluid-end wear component. Available in Neoprene, Buna-N, TPE, Rubber, and Viton. Select material based on fluid type and operating conditions
• Flap Valve Assemblies: Two required per pump. Available in Neoprene, Buna-N, Neoprene with cloth insert, and Viton materials. Cloth insert Neoprene recommended for high-cycle and abrasive applications
• Diaphragm Rebuild Kit: Complete kit including diaphragm, flapper assemblies, and all necessary hardware for a full fluid-end rebuild in a single order
• Connecting Rod and Bearing: Drivetrain components serviced during major rebuilds. Grease the connecting rod bearing at regular intervals through the grease fitting
• Lip Seals and Case Gasket: Replace at each major rebuild to prevent oil and fluid ingress into the drivetrain housing
• Ball Bearings and Needle Bearing: Inspect and replace as part of full drivetrain rebuilds
• Crank Arm and Gear Set: Long-life drivetrain components replaced during full overhauls
• Suction Strainer: Inspect and clean before each use. Replace if cracked or blocked to protect internal pump components
• Engine Service Parts: Air filter, spark plug, and oil for the Honda GX160 engine serviced on the engine manufacturer’s recommended schedule

Diaphragm Material Selection for the MCP5538

The diaphragm material you choose for the CH&E Generac Magnum MCP5538 diaphragm trash pump directly affects service life and pump reliability. Select the material that best matches the fluid being pumped and the conditions in which the pump operates.

Flap Valve Selection for the MCP5538

Each CH&E Generac Magnum MCP5538 diaphragm trash pump requires two flap valve assemblies. The correct valve material depends on the fluid being pumped and the operating cycle intensity.

• Neoprene: General outdoor dewatering, construction and agricultural applications, moderate chemical exposure
• Buna-N: Petroleum-based fluid transfer and light chemical contact applications
• Neoprene with Cloth Insert: Recommended for abrasive slurries, high-cycle applications, and extended pumping where longer valve life between replacements is a priority
• Viton: Aggressive chemical environments and high-temperature fluid applications

Maintenance Guidance for the CH&E Generac Magnum MCP5538 Diaphragm Trash Pump

The low-maintenance design of the MCP5538 diaphragm trash pump reduces the frequency of service compared to centrifugal pump alternatives, but regular inspection and timely replacement of wear components are essential for reliable long-term performance.

• Diaphragm inspection: Inspect every 250 operating hours. Replace at the first sign of cracking, stiffness, deformation, or reduced pump output. In abrasive water conditions, inspect more frequently
• Flap valve inspection: Check valve condition and seating quality at each diaphragm inspection. Replace valves showing wear, tearing, or failure to seat cleanly
• Suction strainer: Inspect and clean before each use. Replace immediately if cracked, deformed, or blocked
• Connecting rod bearing: Grease through the grease fitting at regular service intervals to prevent dry bearing wear
• Case gasket and lip seals: Replace at each major rebuild to maintain a leak-free drivetrain housing
• Honda GX160 engine: Change engine oil every 25 hours. Inspect and clean the air filter every 50 hours. Replace the spark plug annually or at signs of degraded starting performance

How Often Should I Rebuild the MCP5538 Diaphragm Trash Pump?

Under normal operating conditions, plan for a full fluid-end rebuild every 500 to 750 operating hours, or at the first sign of reduced output, weakened auto-priming performance, or visible diaphragm wear. In abrasive or high-cycle applications such as continuous pond dewatering or sandy water pumping, shorten the rebuild interval and inspect wear components more frequently.

Common Service Questions for the CH&E Generac Magnum MCP5538 Diaphragm Trash Pump

What makes the MCP5538 suitable for sandy and muddy water?

The MCP5538 diaphragm design eliminates the impeller shaft and mechanical seal found in centrifugal pumps. These are the components most vulnerable to damage when pumping water containing sand, silt, and abrasive particles. The diaphragm mechanism moves fluid without relying on rotating parts in the flow path, making it resistant to the abrasive wear that would damage a centrifugal pump under the same conditions.

Can the MCP5538 run dry without damage?

Yes. The CH&E Generac Magnum MCP5538 diaphragm trash pump is designed to run dry indefinitely without sustaining internal damage. When the water source is depleted, the pump continues operating without harm to any internal component. When water pools up again at the suction inlet, the pump automatically re-primes and resumes pumping without operator intervention. This capability is a significant advantage in seepage dewatering and foundation drainage applications where flow is intermittent and unattended operation is common.

What is the maximum flow rate and head for the MCP5538?

The CH&E Generac Magnum MCP5538 delivers a maximum flow rate of 85 gallons per minute (322 Lpm) with a maximum head of 50 feet (15.2 meters). These performance figures are achieved under optimal conditions with a clean suction line, correctly sized discharge hose, and minimal head loss from elevation and friction.

What engine does the MCP5538 use and what maintenance does it require?

The MCP5538 uses a Honda GX160 engine with a maximum output of 5.5 HP at 3600 RPM. Honda GX series engines are known for long service life and straightforward maintenance. Key service intervals include engine oil changes every 25 hours, air filter cleaning every 50 hours, and spark plug replacement annually or when starting performance degrades. Follow the Honda GX160 engine manual for the complete maintenance schedule specific to your operating conditions.

How does the MCP5538 compare to the Generac T20-S trash water pump?

The MCP5538 is a diaphragm prime pump while the Generac T20-S is a wet-prime centrifugal trash pump. The MCP5538 is better suited for shallow and muddy dewatering applications where dry-run capability, sand and silt tolerance, and automatic intermittent re-priming are priorities. The T20-S delivers a higher flow rate of up to 185 GPM and is better suited to continuous high-volume pumping of water with larger solid particles. For seepage and foundation drainage, the MCP5538 is the stronger choice. For large-volume continuous dewatering from an open water source, the T20-S may be more appropriate.

Where can I order MCP5538 diaphragm pump repair parts?

Ken’s Distributing Company is a specialist in CH&E Generac Magnum diaphragm pump repair parts for the full MCP series range. Kendisco stocks diaphragm kits, rebuild kits, flap valve assemblies, seals, bearings, and all platform components for the MCP5538 and related models. Contact the Kendisco team at 303-699-7845 with your unit serial number for fast, accurate parts identification and availability confirmation.

Industries and Applications for the CH&E Generac Magnum MCP5538 Diaphragm Trash Pump

The CH&E Generac Magnum MCP5538 diaphragm trash pump is used across a wide range of industries where self-priming performance, dry-run tolerance, and the ability to handle muddy and sandy water are essential to keeping operations moving.

• Construction and Foundation Dewatering: Removes seepage, groundwater, and muddy water from active excavations, trenches, and foundations. Auto-priming and dry-run capability allow unattended operation during overnight dewatering cycles
• Pond and Ditch Dewatering: Pumps shallow and muddy water from ponds, drainage ditches, and low-lying areas containing silt, sediment, and suspended particles
• Agriculture and Irrigation: Transfers water from ponds, open sources, and irrigation ditches where sand, silt, and debris content would damage centrifugal pump seals and impellers
• Septic and Waste Management: Handles septic tank contents, effluent, and industrial waste water in portable service and maintenance operations
• Mining and Quarrying: Manages mine drainage and muddy water in surface and underground environments where abrasive water conditions are a constant challenge for centrifugal pump seals
• Municipal and Utility Maintenance: Supports bypass pumping, storm drain management, and emergency water removal operations requiring reliable automatic self-priming performance
• Marine Applications: Removes bilge water, ballast, and marine tank contents where dry-run capability is a practical operational and safety requirement

Order CH&E Generac Magnum MCP5538 Diaphragm Trash Pump Parts from Kendisco

Ken’s Distributing Company is a trusted repair parts specialist for the CH&E Generac Magnum MCP5538 diaphragm trash pump and the complete MCP and CH&E diaphragm pump series range. Whether you need a diaphragm kit, complete rebuild kit, flap valve assemblies, seals, bearings, engine service parts, or any other component for your MCP5538, the Kendisco team has the inventory and technical knowledge to get your order right.

Call Ken’s Distributing Company at 303-699-7845, submit a quote request online, or contact us by email with your unit serial number for fast and accurate parts identification. Getting your CH&E Generac Magnum MCP5538 diaphragm trash pump back in service starts here.
