Little Giant pre-packaged Duplex Systems are used in the collection of sewage, effluent, drainage, toilet and seepage water, evacuation for homes, farms, light commercial and industrial use. These systems have the ability to handle both liquids and solid waste up to 2″ diameter where a gravity system will not work, such as in septic systems that are below the main sewer line.

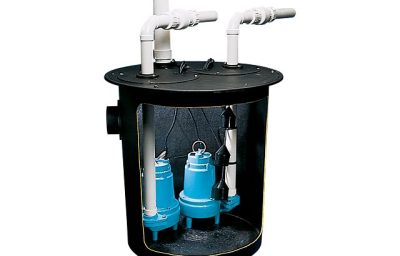

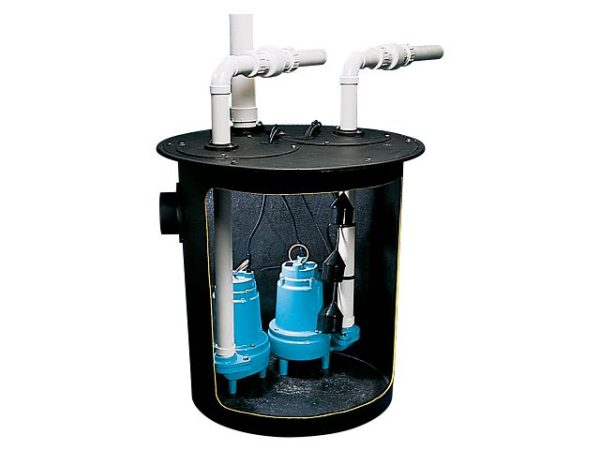

Little Giant Duplex Systems feature a one-piece, seam-free basin construction with durable steel gasketed cover as added protection against wastewater seeping in or out. Also included with the basin is a 4″ inlet hub made of cast iron construction. Duplex covers include two access plates. Duplex Systems have a temperature rating of up to 135 °F (57.2 °C).
| Vent | 2″ (51 mm) |
| Discharge | 2″ (51 mm) |
| Basin Size | 24″ x 36″ (61 cm x 91.4 cm) |
| Basin Material | Structural foam |
| Cover Material | Steel |
| Pump Options | 9SC, 10SC-2″ |
| Head | 9SC GPM (LPM) | 10SC – 2″ GPM (LPM) | 16G GPM (LPM) |
| 5′ | 100 (379) | 120 (454) | 51 (193.1) |
| 10′ | 80 (303) | 100 (379) | 49.3 (186.6) |
| 15′ | 60 (227) | 80 (303) | 46.6 (176.4) |
| 20′ | – | 44 (167) | 43.9 (166.2) |
| 30′ | – | – | 37.5 (142) |
| 40′ | – | – | 28.7 (108.6) |
| 50′ | – | – | 15.3 (57.9) |
| Item | Model | Description |
|---|---|---|
| 14940697 | 9S-DPLX | Duplex Sewage Package, 4/10 hp sewage pump, 115 V, 2″ vent, 2″ discharge, 2″ vent, 24″ x 36″ structural foam basin, steel cover, includes check valve and control panel |
| 14940699 | 10S-DPLX | Duplex Sewage Package, 1/2 HP sewage pumps, 115 V, prepackaged with 24″ x 36″ structural foam basin, includes check valve, control panel, 2″ vent, 2″ discharge, steel cover, cast iron inlet hub |
| Item | Model | Description |
|---|---|---|
| 509818 | 16G-DPLX | Duplex Grinder Package, 1 hp grinder pump, 115 V, 2″ vent, 2″ discharge, 30″ x 36″ structural foam basin, steel cover, includes check valve and control panel |
