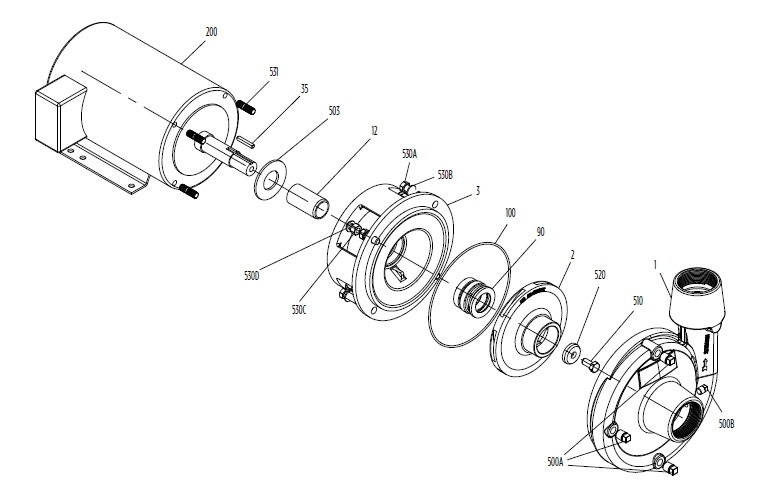

Franklin Electric FAC Pump (3-5 HP) Repair Parts Breakdown
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
| Fig. No. | Part Description | Part No. | Materials of Construction | |
|---|---|---|---|---|
| FAC-300 | FAC-500 | |||
| 1 | FAC Pump Case | 305459001 | Cast Iron, ASTM-A48 CL30 | |
| 2 | FAC Impeller | 305453025 | 305453026 | Cast Iron, ASTM-A48 CL30 |
| 3 | FAC Motor Adapter | 305453027 | Cast Iron, ASTM-A48 CL30 | |
| 12 | FAC Mechanical Seal Shaft Sleeve | 305458011 | 416 Stainless Steel | |
| 35 | FAC Impeller Shaft Key | 305453028 | 305451003 | 301 Stainless Steel |
| 90 | FAC Mechanical Shaft Seal | 240070 | Carbon/Ceramic/Viton® SS | |
| 100 | FAC Case O-Ring (2-pack) | 305463004 | Buna-N | |
| 200 | FAC Motor | See Motor Section | Misc. | |
| 503 | FAC Water Slinger | 305453030 | Neoprene | |
| 510 | FAC Impeller Hex Cap Screw | 305463077 | 316 Stainless-Grade 5 | |
| 520 | FAC Impeller Washer | 305448013 | 305455014 | 300 Series Stainless Steel |
| 531 | FAC Threaded Stud (4-Pack) | 305463129 | Zinc Plated Steel | |
| 500A | FAC Pipe Plug 1/4″ (4-Pack) | 305463020 | Cad-Plated Steel | |
| 500B | FAC Pipe Plug 1/8″ (4-Pack) | 305463009 | Cad-Plated Steel | |
| 530A | FAC Volute Hex Cap Screw (12-Pack) | 305463010 | Zinc Plated Steel | |
| 530B | FAC Lockwasher – Volute (6-Pack) | 305463032 | Zinc Plated Steel | |
| 530C | FAC Hex Nuts – Motor Adapter (6-Pack) | 305463033 | Zinc Plated Steel | |
| 530D | FAC Lockwasher – Motor Adapter (6-Pack) | 305463032 | Zinc Plated Steel | |
