| Fig. No. |
Part Description |
Part No. |
|

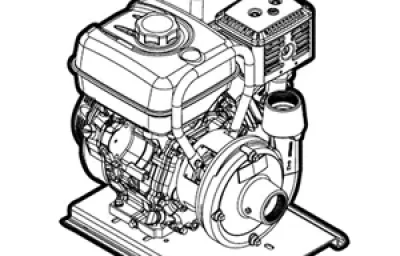

| FACGF-5 |
FACGF-5H |
FACGF-8 |
FACGF-8H |
FACGF-23K |
Materials |
| 1 |
FACGF Pump Case |
305459001 |
305459003 |
Cast Iron, ASTM-A48 CL30 |
| 2 |
FACGF Impeller |
305459004 |
305459005 |
305459007 |
Cast Iron, ASTM-A48 CL30 |
| 3 |
FACGF Motor Adapter |
305459008 |
305459009 |
305459010 |
Cast Iron, ASTM-A48 CL30 |
| 12 |
FACGF Mechanical Seal Shaft Sleeve |
305458010 |
305459011 |
|
305459013 |
416 Stainless steel |
| 35 |
FACGF Shaft Key |
N/A |
305456005 |
300 Stainless Steel |
| 70 |
FACGF Base, Engine Frame |
305459015 |
305459016 |
305459024 |
CRS (Low Carbon) |
| 76 |
FACGF Battery Holder Assembly |
N/A |
305457008 |
CRS (Low Carbon) |
| 77 |
FACGF Pump Handle |
305459017 |
305459018 |
305459019 |
N/A |
CRS (Low Carbon) |
| 90 |
FACGF Mechanical Shaft Seal |
305463116 |
305463043 |
Carbon/Ceramic Viton/316SS |
| 100 |
FACGF Case O-ring / Gasket |
305463117 |
305463118 |
EPDM |
| 200 |
FACGF Engine |
See Engines Below |
Misc. |
| 500A |
FACGF Pipe Plug 1/4″ (4-Pack) |
305463020 |
Cad-Plated Steel |
| 500B |
FACGF Pipe Plug 1/8″ / 3/8″ (4-Pack) |
305463009 |
305463175 |
Cad-Plated Steel |
| 503 |
FACGF Water Slinger |
305458022 |
305456009 |
305459022 |
Neoprene |
| 510 |
FACGF Impeller Bolt |
N/A |
305463119 |
300 Stainless Steel |
| 520 |
FACGF Impeller Washer |
N/A |
305455014 |
300 Stainless Steel |
| 531 |
FACGF Threaded Stud – Volute (8-Pack) |
305463114 |
N/A |
18-8 Stainless Steel |
| 530A |
FACGF Lockwasher – Volute (8-Pack) |
305463032 |
N/A |
Zinc Plated Steel |
| 530B |
FACGF Hex Nut – Volute (8-Pack) |
305463033 |
N/A |
Zinc Plated Steel |
| 530C |
FACGF Hex Bolt – Motor/Adapter (4 Req.) |
305463120 |
305463223 |
N/A |
Zinc Plated Steel |
| 530D |
FACGF Collar Seal/Washer – Motor/Adapter |
305463107 |
305463092 |
N/A |
Nylon/Zinc Plated Steel |
| 531 |
FACGF Threaded Stud – Motor/Adapter (4-Pack) |
N/A |
305463093 |
Zinc Plated Steel |
| 530A |
FACGF Lockwasher – Motor/Adapter (8-Pack) |
N/A |
305463032 |
Zinc Plated Steel |
| 530B |
FACGF Hex Nut – Motor/Adapter (8-Pack) |
N/A |
305463033 |
Zinc Plated Steel |
| 530C |
FACGF Hex Bolt – Volute (12-Pack) |
N/A |
305463010 |
Zinc Plated Steel |
| 530E |
FACGF Hex Bolt – Base (4-Pack) |
305463122 |
305463123 |
305463122 |
305463111 |
Zinc Plated Steel |
| 530F |
FACGF Washer Base (4-Pack) |
305463109 |
Zinc Plated Steel |
| 530G |
FACGF Lockwasher – Base (4-Pack) |
305463092 |
Zinc Plated Steel |
| 530H |
FACGF Hex Nut – Base (4-Pack) |
305463062 |
Zinc Plated Steel |
| Not shown |
FACGF Spacer – Base (4 Pack) |
N/A |
305463192 |
N/A |
Cast Iron, ASTM-A48 CL30 |
