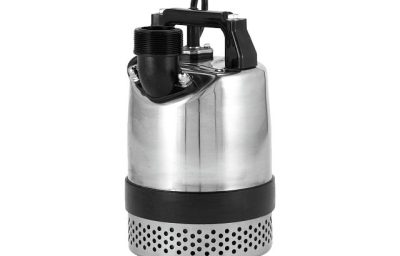

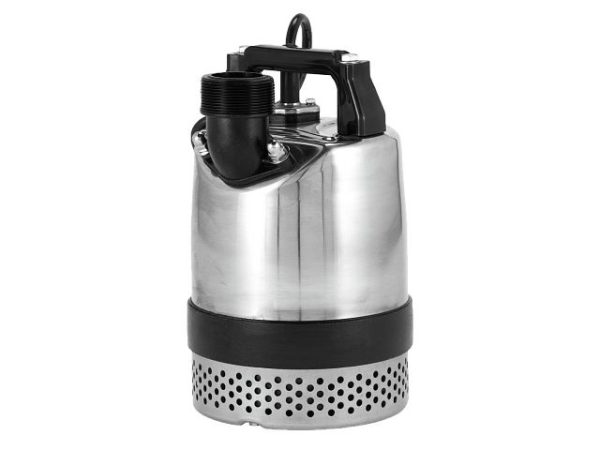

When you need a versatile, construction-grade utility pump the FL/FS Series is prepared to meet your needs. Little Giant’s FLS/FS Series combines both portability and power all-in-one. Ideal for water transfer or recirculation and general construction dewatering, the FLS/FS Series delivers continuous duty cycling for heavy use applications.
FLS/FS utility pumps are available with either a 1/2 or 1 horsepower permanent split capacitor (PSC) motor with protection against mechanical overloading, stalling of the motor shaft, and more. Each offers an impressive discharge capability of 2″ MNPT. Both are equipped with manual switch operation and come in 115 volts.
| FLS-400 | FS-750 | |
| Power | 1/2 hp | 1 hp |
| Capacity | 60 gpm @ 5′ | 80 gpm @ 5′ |
| Shut Off | 37′ (8 m) | 52′ (15.8) |
| Max. Liquid Temp. | 140 °F (60 °C) | 140 °F (60 °C) |
| Discharge | 2″ MNPT | 2″ MNPT |
| Impeller | Urethane rubber | Balanced ductile iron |
| Electrical | 115 V, 60 Hz, 5 A | 115 V, 60 Hz, 10 A |
| Operation | Manual | Manual |
| Head | FLS-400 GPM (LPM) | FS-75 GPM (LPM) |
| 5′ | 60 (227.1) | 80 (302.8) |
| 10′ | 54 (204.4) | 76 (287.7) |
| 15′ | 47 (177.9) | 73 (276.3) |
| 20′ | 42 (159) | 68 (257.4) |
| 30′ | 20 (75.7) | 54 (204.4) |
| 40′ | – | 38 (143.8) |
| Item | Model | HP | Volts | Cord Length | Discharge |
|---|---|---|---|---|---|
| 620240 | FLS-400 | 1/2 hp | 115 VAC | 20 ft | 2 “ |
| 620241 | FS-750 | 1 hp | 115 VAC | 20 ft | 2 “ |
