Little Giant’s HT-VCL Series are high-temp condensate pumps with a low-profile design rated for up to 212 degrees Fahrenheit. Designed for use in plenum applications, these pumps are ideal for steam humidifiers and boiler applications. They also boast a higher flow rating and increased shut-off versus competitive products. This Series is compliant with UL standard UL2043, “Fire Test for Heat and Visible Smoke Release for Discrete Products and Their Accessories Installed in Air-handling Spaces.”

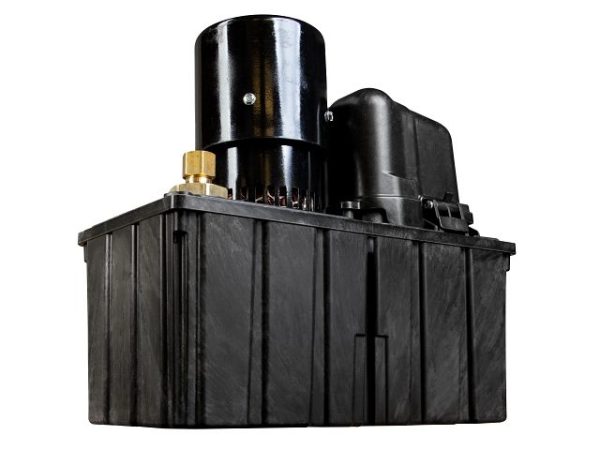

The Little Giant HT-VCL-P Series high-temp condensate pump automatically removes condensate from an air conditioner evaporator coil, refrigeration equipment coil, condensing furnace, dehumidifiers, condensing boiler, or steam-generated humidifier. It is not designed for use with steam condensate boilers over 212 °F (100 °C). A float switch mechanism automatically starts and stops the pump.
| Capacity | 575 gph @ 5′ |
| Shut Off | 62′ (18.3 m) |
| Max. Liquid Temp. | 212 °F (100 °C) |
| Discharge | 1/2″ Compression Fitting (12.7 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 6.7 A 208-230 V, 60 Hz, 4 A 380-460 V, 60 Hz, 1.8 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 5′ | 575 (2176) |
| 10′ | 560 (2120) |
| 15′ | 530 (2006) |
| 20′ | 505 (1911) |
| 25′ | 478 (1809) |
| 30′ | 450 (1703) |
| 40′ | 375 (1419) |
| 50′ | 262 (992) |
| 60′ | 66 (250) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 553160101 | HT-VCL-60-P | 115 VAC | 62 ft | Yes | No |
| 553160102 | HT-VCL-60-P | 208 VAC / 230 VAC | 62 ft | Yes | No |
| 553160104 | HT-VCL-60-P | 380 VAC / 460 VAC | 62 ft | Yes | No |
