Monarch Industries TT-20 Self-Priming Trash Pump and Repair Parts
⚠ DISCONTINUED MODEL — The Monarch Industries TT-20 pump has been discontinued. Genuine OEM repair parts remain available while supplies last. Pump Model is now replaced with the FMIT Series

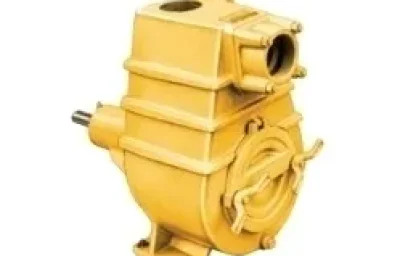

The Monarch Industries TT-20 is a frame-mounted, self-priming trash pump built with heavy-duty, all-iron construction engineered for industrial, commercial, and marine applications where solids handling is critical.
The Monarch TT Series features a cast gray iron casing with extra reinforcing ribs for added strength and a large capacity for faster priming. Two heavy-duty sealed ball bearings ensure long service life, while the enclosed cast gray iron impeller with a two-vane design handles spherical solids. Order genuine Monarch Industries TT-20 repair parts below all in-stock and shipped same-day from our warehouse. The unique impeller design eliminates the need for a wear plate, delivering higher efficiency. The Viton / stainless steel / carbon-ceramic mechanical seal delivers reliable leak prevention under demanding conditions.
A built-in check valve with threaded NPT suction inlet prevents syphoning and facilitates priming. The clean-out cover uses wing nuts for tool-free removal no wrenches required enabling quick access for inspection or clean-out. The priming plug enables priming without removal of the discharge piping. A replaceable wear ring maintains pump efficiency over the life of the unit. The stainless steel shaft includes a keyway for secure impeller mounting.
TT-20 Specifications
| Specification | TT-20 |
|---|---|
| Order No. | 608861 |
| Pump Size (Suction & Discharge NPT) | 2″ |
| Solids Handling | 1¼” |
| Shaft Diameter | 1½” |
| Shaft Length | 3″ |
| Key Size | ¼” |
| Impeller No. | 772 |
| Impeller Diameter | 6.28″ |
| Casing | Cast Gray Iron with Reinforcing Ribs |
| Impeller Type | Enclosed Cast Gray Iron, Two-Vane |
| Seal | Viton / Stainless Steel / Carbon-Ceramic |
| Shaft | Stainless Steel with Keyway |
| Bearings | Two Heavy-Duty Sealed Ball Bearings |
| Drain Plug | ½” NPT |
| Priming Plug | 1½” NPT |
| Shipping Weight | 129 lbs |
Hydraulic Motor Adapter Kit
| Model | Hydraulic Adapter |
|---|---|
| TT-20 / TT-30 / TT-40 | 612881 — Includes bracket and coupling used to couple hydraulic motor with SAE J744C mounting flange to TT-40. |
The Monarch Industries TT-20 runs at 1750 or 3450 RPM and delivers up to 155 GPM at 40 ft of head. With a 2″ NPT suction and discharge and 1¼” solids handling capacity, this pump was built for the toughest job sites.
Monarch Industries TT-20 Full Repair Parts List
TT-20 Type A Parts by Reference Number – Use the table below to identify your Monarch Industries TT-20 part by reference number. All OEM replacement parts ship while supplies last.
| Ref.# | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 414690 | 1 | Transmission Head |
| 2 | 465000 | 1 | Pump Casing |
| 3 | 414710 | 1 | Adapter Plate |
| 4 | 465020 | 1 | Impeller |
| 5 | 465030 | 1 | Intake Check Valve |
| 6 | 065040 | 1 | Weight |
| 7 | 013670 | 1 | Weight |
| 8 | 465050 | 1 | Clean-Out Cover |
| 10 | 414470 | 1 | Bearing Cover |
| 11 | 414770 | 1 | Seal Cover |
| 12 | 414781 | 1 | Shaft |
| 13 | 175500 | 1 | Washer |
| 14 | 433910 | 2 | Wing Nut |
| 17 | 465071 | 1 | Wear Ring |
| 23 | 191261 | 1 | Valve Rubber |
| 25 | 191280 | 1 | Gasket |
| 28 | 240359 | 1 | Seal, 1 1/2″ dia. |
| 29 | 226250 | 1 | Bolt, 3/8″ UNC x 2″ |
| 30 | 164641 | 6 | Stud, 3/8″ UNC x 1 3/4″ |
| 31 | 120000 | 4 | Bolt, 3/8″ UNC x 7/8″ |
| 34 | 225750 | 1 | Bolt, 1/4″ UNC x 1″ |
| 35 | 147360 | 3 | Screw, 1/4″ UNC x 3/4″ |
| 36 | 148350 | 1 | Set Screw, 5/16″ UNC x 3/8″ |
| 37 | 101170 | 2 | Ball Bearing #6207 |
| 38 | 110780 | 1 | Bearing Lock Nut #NO7 |
| 39 | 111180 | 1 | Bearing Lock Washer #WO7 |
| 40 | 227830 | 6 | Nut, 3/8″ UNC |
| 42 | 227810 | 1 | Nut, 1/4″ UNC |
| 43 | 176520 | 3 | Spring Washer, 1/4″ |
| 45 | 185610 | 2 | Plug, 1/8″ NPT |
| 46 | 175000 | 1 | Washer Plain 1/4″ |
| 47 | 174470 | 2 | Washer, 9/16″ |
| 48 | 185650 | 1 | Plug, 3/4″ NPT |
| 50 | 185780 | 1 | Plug, 1 1/2″ NPT |
| 52 | 185620 | 1 | Plug, 1/4″ NPT |
| 53 | 432120 | 1 | Key |
| 60 | 165260 | 2 | Stud, 1/2″ UNC x 2 1/4″ |
| 61 | 198990 | 1 | “O” Ring #260 |
| N/S | 465080 | — | Strainer 2″ NPT |
Ordering Information
| IMPORTANT: | When ordering parts, specify the model and type (TT-20 Type A), code number, and part description. |
