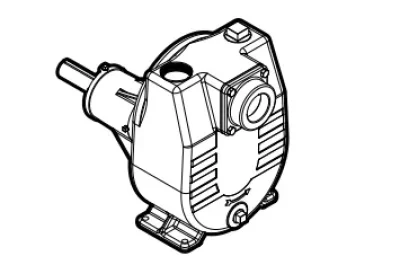

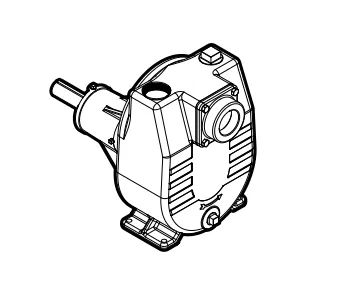

Franklin Electric Centrifugal Frame Mount Self Prime FMIT Water Pump and Repair Parts
Franklin Electric FMIT frame mount self-priming pump is one of the highest-performing portable centrifugal pumps in the Franklin Electric surface pump lineup, and it holds the distinction of being among the top-clicked pages at Ken’s Distributing Company (Kendisco) for good reason. With capacities up to 760 GPM, heads up to 175 feet, and the ability to handle water containing mud, sand, and silt up to 10 percent by volume, the FMIT is built for serious work in irrigation, construction, mining, municipal, and water truck applications.
The FMIT is a frame mount design, meaning the pump end is mounted to a separate bearing frame and driven by a belt, direct drive, or engine rather than being coupled directly to a motor. This gives you flexibility in selecting your power source and makes the pump adaptable to a wide range of field configurations. Ken’s Distributing stocks the complete FMIT lineup along with all genuine Franklin Electric replacement parts and repair components.
What Is the Franklin Electric FMIT Frame Mount Self-Priming Pump?
The Franklin Electric FMIT frame mount self-priming pump is a heavy-duty centrifugal pump designed to self-prime on startup, meaning it does not require a foot valve or manual priming in most installations. The semi-open cast iron impeller handles solids up to 1-3/8 inches in diameter depending on the model size, making it capable of pumping water that contains debris, sediment, mud, and silt without clogging.
The pump features a rugged cast iron volute with tapped openings for priming, venting, and draining, a heavy-duty sealed bearing frame with a keyed stainless steel shaft, and a replaceable wear plate that allows you to restore pump efficiency without replacing the entire pump casing. The mechanical seal uses standard carbon and ceramic faces with FKM elastomers and 300 series stainless steel components for reliable, long-term sealing performance.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 760 GPM |
| Maximum Head | 175 Feet |
| Maximum Working Pressure | 120 PSI |
| Maximum Temperature | 212 degrees F |
| Rotation | Clockwise when viewed from motor end |
| Pipe Connections | NPT |
| Solids Handling Capability | Up to 10 percent by volume (mud, sand, silt) |
| Drive Type | Frame mount, bolt or direct drive |
| Shaft Material | Keyed Stainless Steel |
Model Size and Port Specifications
| Model | Discharge | Suction | Maximum Solids |
|---|---|---|---|
| FMIT-20 | 2 inch | 2 inch | 3/4 inch |
| FMIT-30 | 3 inch | 3 inch | 1 inch |
| FMIT-40 | 4 inch | 4 inch | 1-3/8 inch |
Pump Features
- Rugged cast iron volute with tapped openings for priming, venting, and draining
- Semi-open cast iron non-clogging impeller designed to handle water with mud, sand, and silt up to 10 percent by volume
- Standard carbon and ceramic mechanical seal faces with FKM elastomers and 300 series stainless steel components for reliable long-term sealing
- Heavy-duty sealed bearing frame for bolt or direct drive applications
- Keyed stainless steel shaft for corrosion resistance and drive compatibility
- Replaceable wear plate allows efficiency to be restored without replacing the pump casing
- Self-priming design eliminates the need for a foot valve in most installations
- Available in 2 inch, 3 inch, and 4 inch port sizes to match flow and application requirements
Applications and Industries
The Franklin Electric FMIT frame mount self-priming pump is built for demanding applications where water quality is variable and downtime is not an option. Its solids-handling capability and self-priming design make it particularly well suited for construction dewatering, agricultural irrigation from open water sources, and water truck filling where debris-laden water is common.
- Agricultural and crop irrigation from ponds, ditches, and open water sources
- Construction site dewatering with sediment-laden water
- Mining water management and process water transfer
- Commercial water transfer operations
- Municipal water supply and emergency response
- Light industrial pumping applications
- Water truck filling for dust control, agriculture, and firefighting support

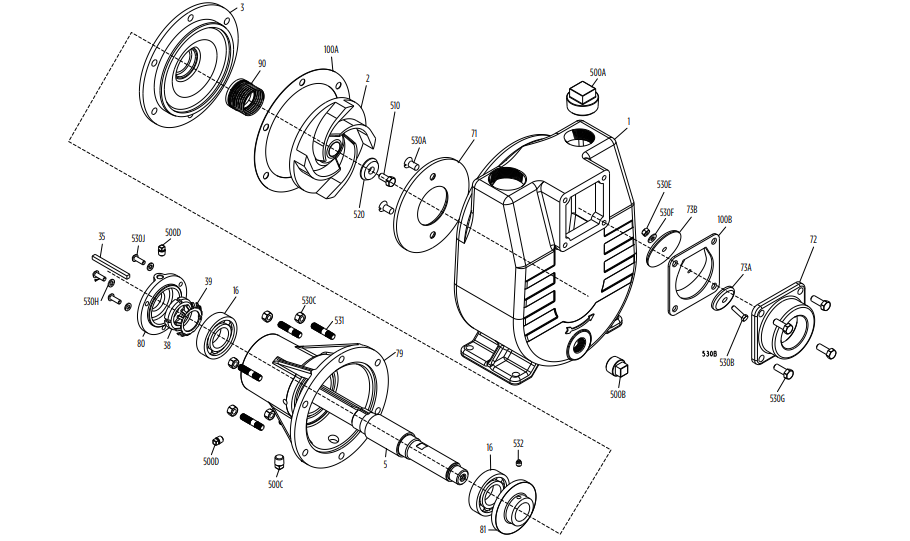

FMIT Exploded Parts view
FMIT MATERIALS AND PARTS /REPLACEMENT PARTS /REPAIR PARTS
| Fig. No. | Part Description | Part No. | Materials of Construction | ||
|---|---|---|---|---|---|
| FMIT-20 | FMIT-30 | FMIT-40 | |||
| 1 | Pump Case | 305455001 | 305455002 | 305455003 | Cast Iron, ASTM-A48 CL30 |
| 2 | Impeller | 305455004 | 305455005 | 305455006 | Cast Iron, ASTM-A48 CL30 |
| 3 | Seal Plate | 305454007 | 305454008 | 305454009 | Cast Iron, ASTM-A48 CL30 |
| 5 | Shaft | 305454013 | 305454014 | 305454015 | 316 Stainless steel |
| 16 | Ball Bearing (2 Req.)* | 305463034 | 305463035 | 305463036 | Misc. |
| 35 | Shaft Key | 305454016 | 305454017 | 1018 CRS | |
| 38 | Nut, Bearing | 305463037 | 305463038 | 305463039 | 300 Series Stainless steel |
| 39 | Lock Washer, Bearing | 305463040 | 305463041 | 305463042 | Zinc-plated steel |
| 71 | Wear Plate | 305455007 | 305455008 | 305455009 | Cast Iron, ASTM-A48 CL30 |
| 72 | Check Valve | 305455010 | 305454019 | 305454020 | Cast Iron, ASTM-A48 CL30 |
| 73A | Top Weight, Check Valve | 305455011 | 305454022 | 305454023 | Cast Iron, ASTM-A48 CL30 |
| 73B | Bottom Weight, Check Valve | 305455012 | 305454025 | Cast Iron, ASTM-A48 CL30 | |
| 79 | Transmission Head | 305454031 | 305454032 | 305454033 | Cast Iron, ASTM-A48 CL30 |
| 80 | Bearing Cover | 305454034 | 305454035 | 305454036 | Cast Iron, ASTM-A48 CL30 |
| 81 | Seal Cover | 305454037 | 305454038 | 305454039 | Cast Iron, ASTM-A48 CL30 |
| 90 | Mechanical Shaft Seal | 305463043 | 305463044 | Carbon/Ceramic x FKM-stainless steel | |
| 100A | Case Gasket | 305454040 | 305454041 | 305454042 | Neoprene |
| 100B | Flapper Valve | 305454043 | 305454044 | 305454045 | Neoprene |
| 500A | Pipe Plug, NPT (3 pack) | 305463048 | 305463076 | CAD-plated steel | |
| 500B | Pipe Plug, 3/4″ (3 pack) | 305463050 | CAD-plated steel | ||
| 500C | Pipe Plug, 1/4″ (4 pack) | 305463020 | CAD-plated steel | ||
| 500D | Pipe Plug, 1/8″ (4 pack) | 305463009 | N/A | CAD-plated steel | |
| 510 | Hex Bolt, Impeller | 305463077 | 305463078 | 300 Series Stainless steel | |
| 520 | Washer, Impeller | 305455013 | 305455014 | 305455015 | Aluminum plate |
| 530A | Bolts, Wear Plate | 305463079 | Zinc-plated steel | ||
| 530B | Bolt, Flapper | 305463080 | 305463081 | Zinc-plated steel | |
| 530C | Hex Nut (8/8 pack) | 305463033 | 305463059 | Zinc-plated steel | |
| 530E | Nut, Flapper | 305463082 | 305463083 | Zinc-plated steel | |
| 530F | Washer, Flapper | 305463084 | Stainless steel | ||
| 530G | Valve Hex CapScrew (4 or 8 pack) | 305463010 | 305463085 | 305463086 | Zinc-plated steel |
| 530H | Washer, Bearing Cover | 305463066 | 305463067 | Zinc-plated steel | |
| 530J | Bolt, Bearing Cover | 305463068 | 305463069 | Zinc-plated steel | |
| 531 | Threaded Stud, Transmission (6 pack) | 305463031 | 305463073 | Zinc-plated steel | |
| 532 | Set Screw | 305463074 | 305463075 | Zinc-plated steel | |
FMIT ORDER INFORMATION
| Model | Pump Size (Dis. x Suc.) | Order No. | Wt. (lbs) | Solid Size |
|---|---|---|---|---|
| FMIT-20 | 2 x 2 | 90230002 | 108 | 3/4″ |
| FMIT-30 | 3 x 3 | 90230003 | 158 | 1″ |
| FMIT-40 | 4 x 4 | 90230004 | 282 | 1-3/8″ |

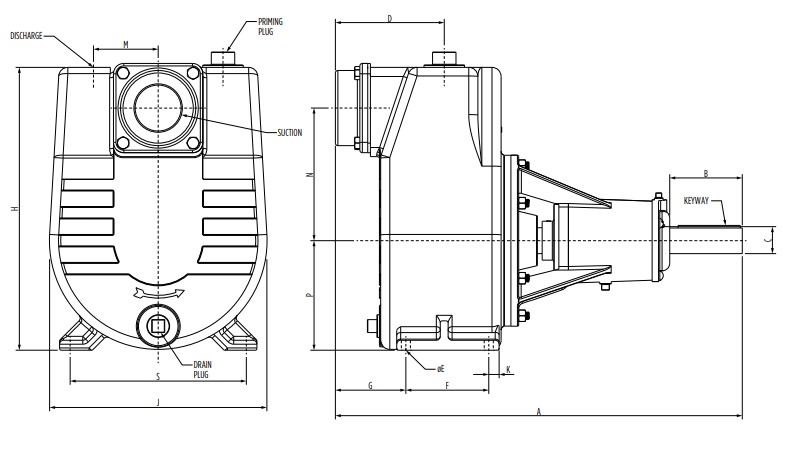

FMIT DIMENSIONS
| Model | Keyway | Dimensions (in) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | M | N | P | S | ||
| FMIT-20 | 1/4 | 19.63 | 3.50 | 1.250 | 5.25 | 0.44 | 4.00 | 3.40 | 13.66 | 10.50 | 0.50 | 3.13 | 6.16 | 5.29 | 8.50 |
| FMIT-30 | 1/4 | 23.21 | 3.42 | 1.250 | 7.75 | 0.56 | 4.75 | 5.00 | 15.88 | 12.76 | 0.75 | 3.25 | 7.31 | 6.13 | 10.75 |
| FMIT-40 | 3/8 | 27.04 | 3.14 | 1.625 | 8.68 | 0.56 | 6.50 | 4.93 | 20.40 | 15.76 | 0.75 | 4.75 | 9.28 | 8.00 | 13.50 |

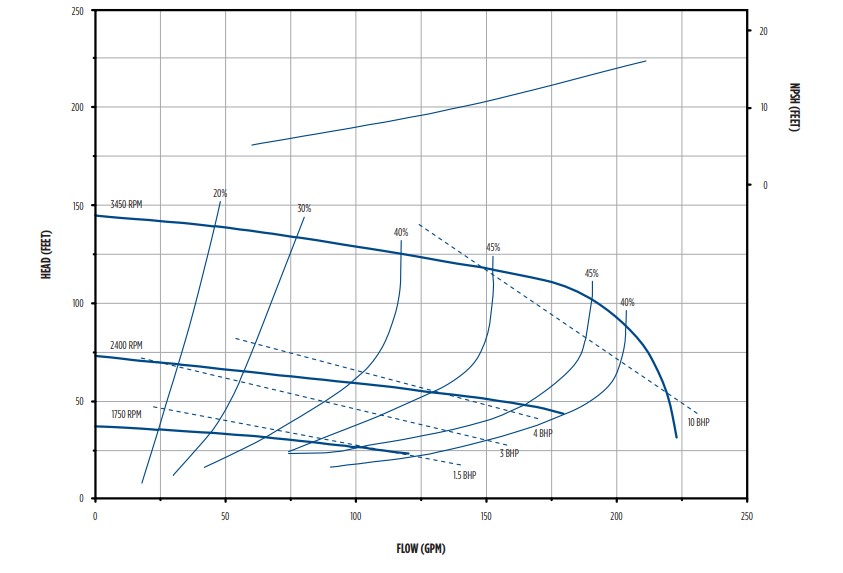

FMIT-20 PERFORMANCE CURVE

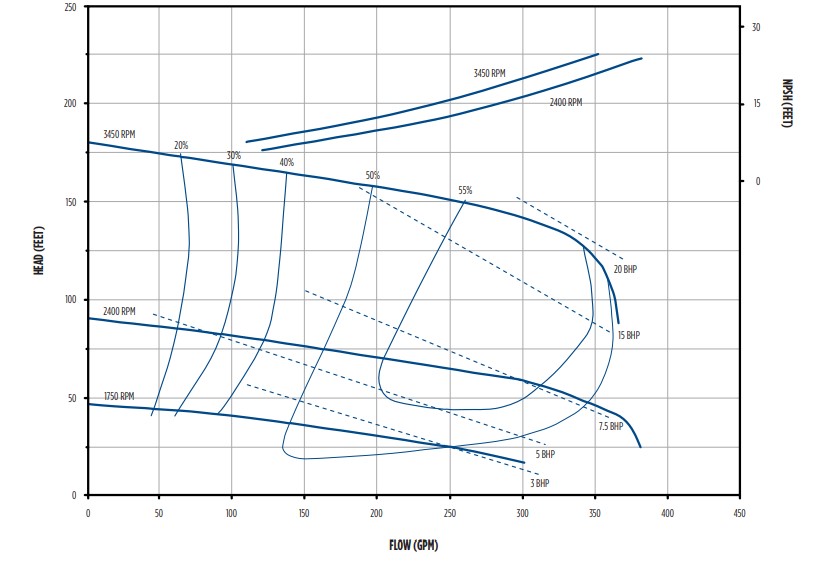

FMIT-30 PERFORMANCE CURVE

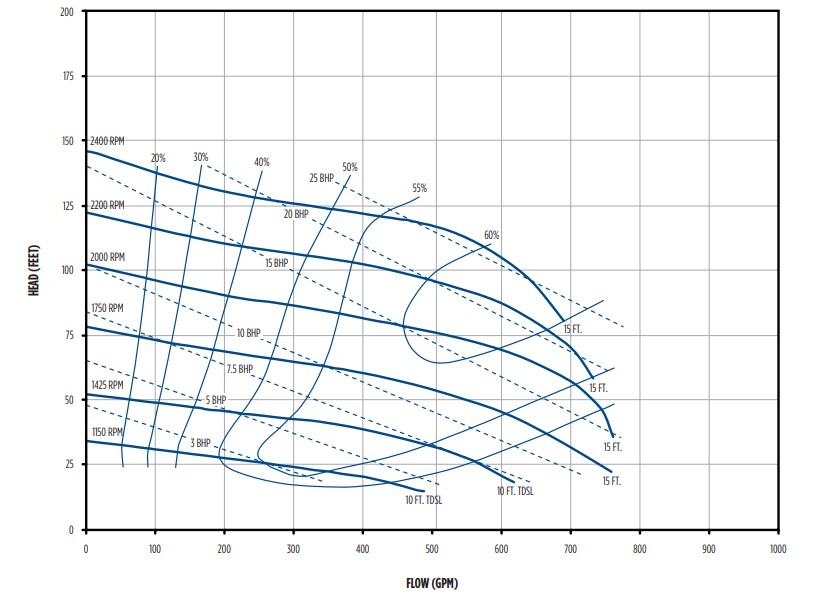

FMIT-40 PERFORMANCE CURVE
Frequently Asked Questions
What is the Franklin Electric FMIT frame mount self-priming pump used for?
The Franklin Electric FMIT frame mount self-priming pump is used for irrigation, construction dewatering, mining water transfer, commercial pumping, municipal water supply, light industrial applications, and water truck filling. Its semi-open impeller and self-priming design make it especially practical for pumping water from open sources like ponds, ditches, and flooded construction sites where debris content is variable.
What does self-priming mean on the FMIT pump?
A self-priming pump is designed to evacuate air from the suction line and prime itself on startup without requiring a foot valve or manual priming. The Franklin Electric FMIT self-primes through its volute design which retains enough water between uses to restart the priming cycle the next time the pump is started. This reduces setup time significantly on job sites and irrigation applications.
What size solids can the FMIT pump handle?
The FMIT handles solids up to 3/4 inch on the FMIT-20, up to 1 inch on the FMIT-30, and up to 1-3/8 inch on the FMIT-40. All models can handle water containing mud, sand, and silt up to 10 percent by volume without clogging.
What is the maximum flow rate of the Franklin Electric FMIT pump?
The Franklin Electric FMIT frame mount self-priming pump delivers capacities up to 760 GPM with heads up to 175 feet and a maximum working pressure of 120 PSI, making it one of the highest-output self-priming pumps in the Franklin Electric surface pump lineup.
What drive options are compatible with the FMIT pump?
The FMIT is a frame mount pump designed for bolt drive or direct drive configurations. The heavy-duty sealed bearing frame with keyed stainless steel shaft is compatible with belt drive, engine direct drive, and motor direct drive setups depending on your power source and installation requirements.
What replacement parts are available for the FMIT pump?
Ken’s Distributing Company (Kendisco) carries genuine Franklin Electric FMIT replacement parts including pump cases, impellers, and seal plates for all three model sizes. See the parts table above for specific part numbers by model. Contact Kendisco directly if you need additional components not listed in the current parts table.
Where can I order the Franklin Electric FMIT pump and replacement parts?
You can order the Franklin Electric FMIT frame mount self-priming pump and all genuine replacement parts from Ken’s Distributing Company at kendisco.com. Kendisco is a trusted Franklin Electric distributor serving agricultural, construction, municipal, and industrial customers with fast access to pump units and repair components.
For questions about the Franklin Electric FMIT frame mount self-priming pump or help selecting the right model size for your flow and pressure requirements, contact the team at Ken’s Distributing Company directly. Kendisco has the product knowledge and inventory to support your project from initial selection through ongoing maintenance and repair.
