Monarch Industries WS50H Series Submersible Effluent Pumps: High-Head Performance for Demanding Systems
The Monarch Industries WS50H Series Submersible Effluent Pumps is a specialized line of 1/2 HP submersible effluent pumps designed specifically for high-head applications. Unlike standard effluent pumps, the WS50H is engineered to generate significant lift of up to 63 feet, making it the ideal choice for deep residential septic systems, mound systems, and light commercial applications where gravity flow is not possible. Built with rugged Cast Iron Class 30 construction, this pump series combines lasting durability with advanced hydraulic performance.
Precision Non-Clog Engineering
Reliability is essential in wastewater transfer. The Monarch Industries WS50H Series features a specially designed two-vane non-clog impeller made from Cast Iron Class 30. This impeller is engineered to pass spherical solids up to 3/4 inch in diameter, significantly reducing the risk of jamming and ensuring smooth, uninterrupted operation in effluent environments containing soft debris.
Powerful High-Torque Motor

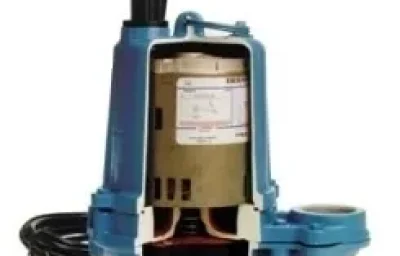

At the core of the WS50H is a high-speed 3450 RPM motor housed in an oil-filled chamber. This design ensures optimal heat dissipation and continuous lubrication for the double ball bearings. The motor uses a capacitor start design for high starting torque, allowing the pump to engage instantly even under load.
For added protection, the single-phase motor includes automatic thermal overload protection with automatic reset, safeguarding the unit from overheating during extended run cycles.
Built to Last
Every component of the Monarch Industries WS50H Series is selected for long-term reliability. The motor shaft is constructed from 416 Stainless Steel to resist corrosion, while the mechanical seal uses a carbon and ceramic face, Type 6, 5/8-inch rotary, to prevent liquid ingress. Stainless steel fasteners are used throughout the assembly, keeping maintenance and serviceability straightforward even after years of continuous submersion.
Key Features
- High Head Capability: Delivers a maximum shut-off head of 63 feet, ideal for pressure sewers and mound systems.
- Rugged Construction: Motor and pump housing are cast from durable Cast Iron Class 30.
- Solids Handling: Two-vane impeller handles up to 3/4″ spherical solids.
- Serviceable Design: Features a 2″ NPT discharge (adaptable to 3″) and stainless steel fasteners.
- Leak Protection: High-quality mechanical carbon/ceramic seal and oil-filled motor chamber.
- Automatic Options: Available with SJE Pump Master float switches for reliable automatic operation (AM models).
- Safety: Thermal overload protection with automatic reset.
Applications
- Mound Septic Systems: Provides the necessary pressure to lift effluent to elevated drain fields.
- Long-Distance Pumping: Ideal for properties where the septic tank is located far from the drain field.
- Light Commercial Waste: Handles effluent transfer for small businesses and commercial properties.
- Deep Basements: Perfect for dewatering or sewage ejection from deep sump pits.
Technical Specifications
Performance Chart (Capacity in U.S. GPM)
| Model | RPM | Total Head in Feet | Shut-Off Head (ft.) | |||||
|---|---|---|---|---|---|---|---|---|
| 10′ | 20′ | 30′ | 40′ | 50′ | 60′ | |||
| WS50H | 3450 | 115 | 98 | 78 | 57 | 30 | 0 | 63 |
WS50H Model Specifications
| Model No. | Order No. | HP | Volts | SFA (Amps) | Phase | Solids Handling | Ship Wt. (lbs.) | Switch Type | Cord Length |
|---|---|---|---|---|---|---|---|---|---|
| WS50HM-20 | 620218 | 1/2 | 115 V | 15.0 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50HAM-20 | 620219 | 1/2 | 115 V | 15.0 | 1 | 3/4″ | 58 | Automatic | 20′ |
| WS50HM-12-20 | 620220 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50HAM-12-20 | 620221 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 58 | Automatic | 20′ |
Dimensions (Inches)
| Model | A (Cord) | B (Height) | C (Intake) | D (Base) | E (Max Width) | F (C to Edge) | G (Base Width) |
|---|---|---|---|---|---|---|---|
| WS50H | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |

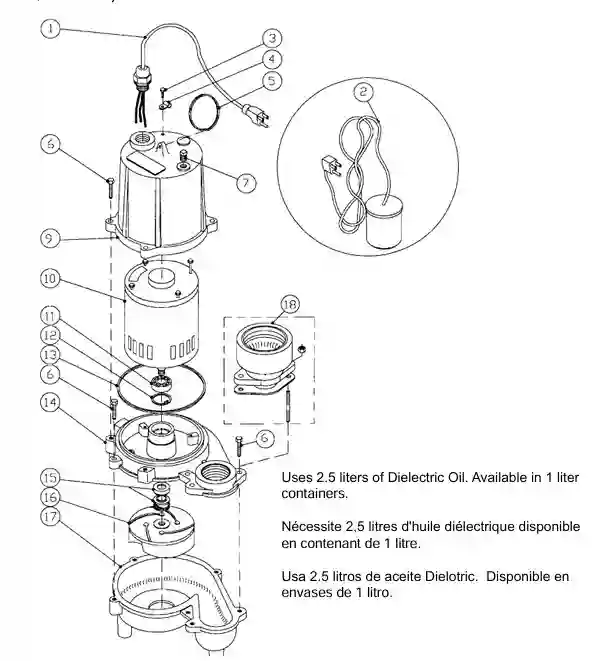

Repair Parts List
Replacement Parts for 115V & 230V Models
| Ref. # | Code # | Qty | Description | Notes |
|---|---|---|---|---|
| 1* | 225116 | 1 | Cord 30 ft. (SJOW-A 16/4) | Optional |
| 1* | 225109 | 1 | Cord 20 ft. (SOW-A 16/4) | Optional |
| 2 | 639606 | 1 | Switch 115V, 20 ft. | Automatic Models Only (115V) |
| 2 | 639610 | 1 | Switch 230V, 15A, 30 ft. | Automatic Models Only (230V) |
| 3 | 144432 | 1 | Screw #8 – 32 UNC x 3/8″ | – |
| 4 | 116842 | 1 | Clamp | Strain Relief |
| 5 | 246316 | 1 | Split Coil Ring, 2.75 O.D. SST | – |
| 6 | 225820 | 10 | Bolt 5/16″ UNC x 1-1/4″ SST | Housing Bolts |
| 7 | 186220 | 1 | Plug 1/4″ NPT Brass | – |
| 8 | 620581 | 2.5 | Insulating Oil (Liters) | Dielectric Oil |
| 9 | 493543 | 1 | Housing | Cast Iron Class 30 |
| 10 | 238254 | 1 | Motor 1HP, 1PH., 115/208-230V | Motor Assembly |
| 11* | 110110 | 2 | Bearing | Included with Motor |
| 12 | 137911 | 1 | Retaining Ring | – |
| 13* | 198994 | 1 | O-Ring, Square | Sealing Ring |
| 14 | 493552 | 1 | Adapter | – |
| 15* | 240160 | 1 | Mechanical Seal, 5/8″ I.D. | Carbon/Ceramic Type 6 |
| 16* | 493227 | 1 | Impeller | WS50H Specific |
| 17 | 493553 | 1 | Casing | Pump Volute |
| 18 | 620385 | – | Adapter Kit 3″ | Accessory |
FAQs
Q: What is the maximum head capacity of the WS50H?
A: The WS50H Series has a shut-off head of 63 feet, meaning it can lift water vertically up to 63 feet before flow stops. This is significantly higher than the standard WS50 series.
Q: Can the WS50H handle sewage solids?
A: Yes, this pump is equipped with a non-clog impeller capable of passing spherical solids up to 3/4 inch in diameter, making it suitable for effluent and light sewage applications.
Q: What is the discharge size?
A: The pump comes standard with a 2″ NPT discharge. An optional adaptor kit is available to convert it to 3″ NPT if required.
Q: Does the automatic version come with a switch?
A: Yes, the “AM” models (e.g., WS50HAM-20) include an SJE Pump Master float switch for automatic on/off operation. The “M” models are manual and require external control.
Q: What voltage options are available for the WS50H?
A: The WS50H is available in both 115V (Models ending in -20) and 208-230V (Models ending in -12-20) configurations. Both are single-phase.
