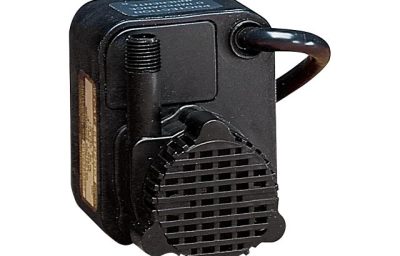

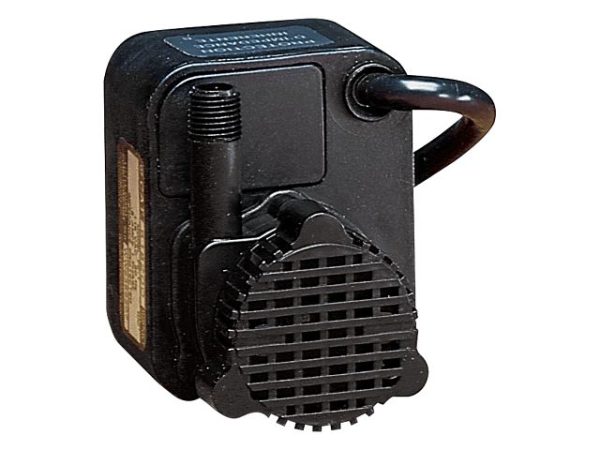

An small epoxy encapsulated submersible pump applicable for commercial, industrial, or residential use. Applications for the PE-1 Series small epoxy encapsulated submersible pump include statuary fountains, water displays, air conditioners, machine tools, and other applications where liquid needs to be transferred or recirculated.
The PE-1 small submersible pump is a compact, 170 gph pump that features a 1/4″ MNPT discharge, 7′ shut-off head capability, screened inlet, and a 6′ power cord. Includes an inlet screen to provide added protection to the pump of debris. This small submersible pump is not recommended for fuel oil transfer, aquariums, or swimming pools.
| Capacity | 170 gph @ 1′ |
| Shut Off | 7′ (2.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Polypropylene |
| Electrical | 115 V, 60 Hz, 0.6 A |
| Head | GPH (LPH) |
| 1′ | 170 (643.5) |
| 3′ | 140 (530) |
| 5′ | 100 (378.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 518200 | PE-1 | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft | |
| 518203 | PE-1H | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft |
