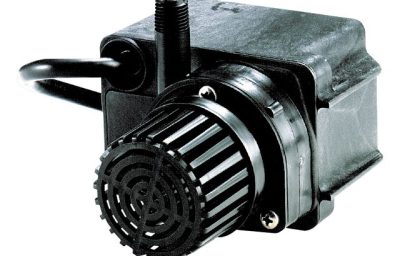

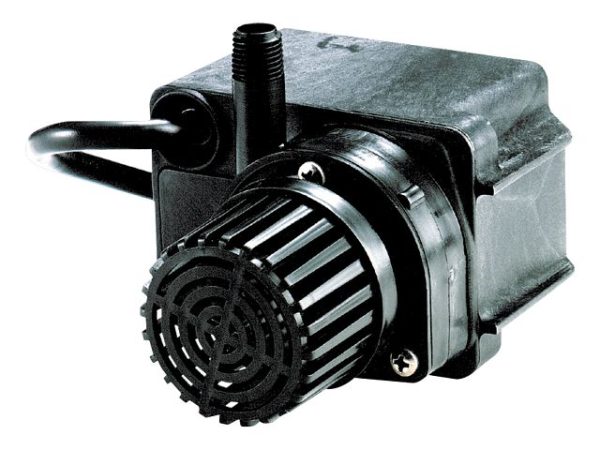

Little Giant PE-2.5F Series Epoxy Encapsulated Submersible Pump, 1/28 HP
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
The PE-2.5F Series is a small epoxy encapsulated submersible pump suitable for commercial, industrial and residential use. Applications for this small epoxy encapsulated submersible pump include statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid needs transferred or recirculated.
Features & Benefits
- 1/28 hp epoxy encapsulated, direct-drive motor
- 13.4′ maximum lift
- Glass-filled polyester housing
- Polypropylene volute
- Fluoroelastomer (FKM) shaft seal
- Snap off-screen covers intake
Overview
The PE-2.5F Series small submersible pump consists of a 475 GPH pump featuring a 1/4″ MNPT discharge, 13.4′. shut-off head capability, screened inlet, and a 6′ power cord. The 1/28 epoxy encapsulated motor in this small submersible pump is built for durability and strength to withstand various conditions.
Specifications
| Capacity | 475 gph @ 1′ |
| Shut Off | 13.4′ (4.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 3/8″ MNPT (9.5 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.4 A |
Performance
| Head | GPH (LPH) |
| 1′ | 475 (1798.1) |
| 3′ | 440 (1665.6) |
| 5′ | 395 (1495.2) |
| 10′ | 205 (776) |
Order Information
PE-2.5F Series Small Submersible Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 518600 | PE-2.5F | 115 VAC | 7.92 gpm / 475 gph | 13.4 ft | 6 ft |
