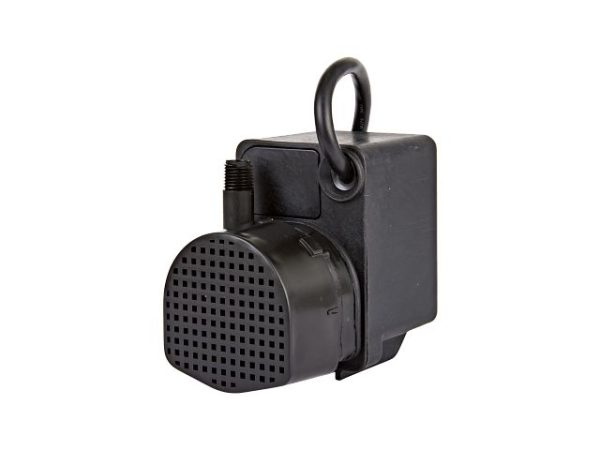

Developed with a durable and crack-resistant epoxy-encapsulated motor design, the PE-2 Series small epoxy encapsulated submersible pump is ideal for water transfer or recirculation and water displays. By operating continuously, this small epoxy encapsulated submersible pump produces greater starting torque and more pressure than comparable mag-drive pumps. Direct-drive pumps are ideal for use in filtration, waterfalls, and streams.
The PE-2 Series is a small submersible pump that is epoxy encapsulated for long-lasting durability. This compact 300 GPH small submersible pump features a 1/4″ MNPT discharge, 12.2′ shut-off capability, screened inlet, and a 6′ power cord. It is equipped with an easy-to-clean screen which helps to protect the pump from debris.
| Capacity | 300 gph @ 1′ |
| Shut Off | 12.2′ (3.7 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 0.8 A |
| Head | GPH (LPH) |
| 1′ | 300 (1135.6) |
| 3′ | 270 (1022.1) |
| 5′ | 240 (908.5) |
| 10′ | 130 (492.1) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 518400 | PE-2H | 115 VAC | 5 gpm / 300 gph | 12.2 ft | 6 ft |
